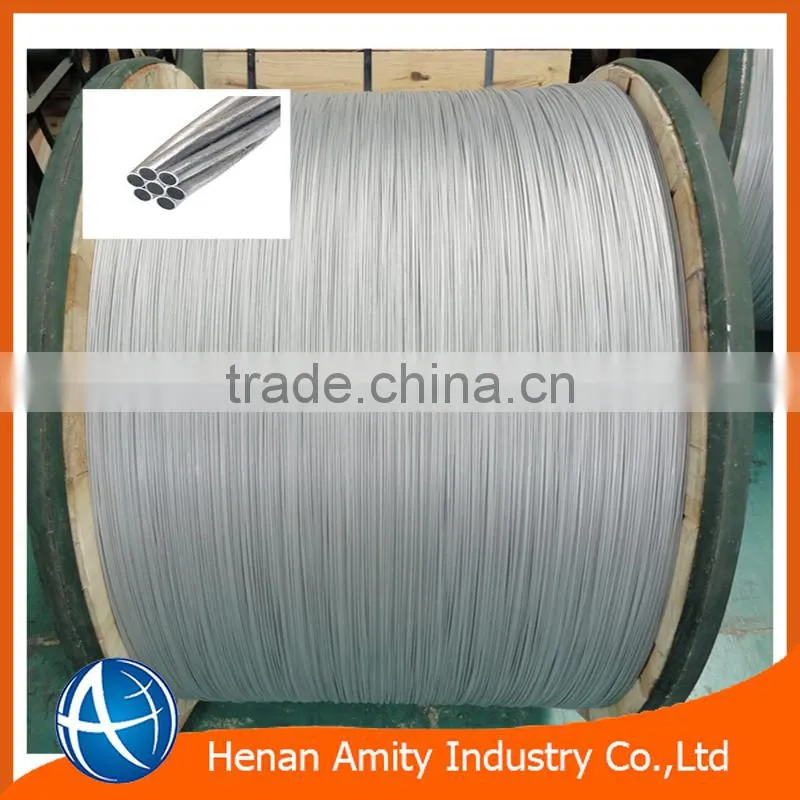

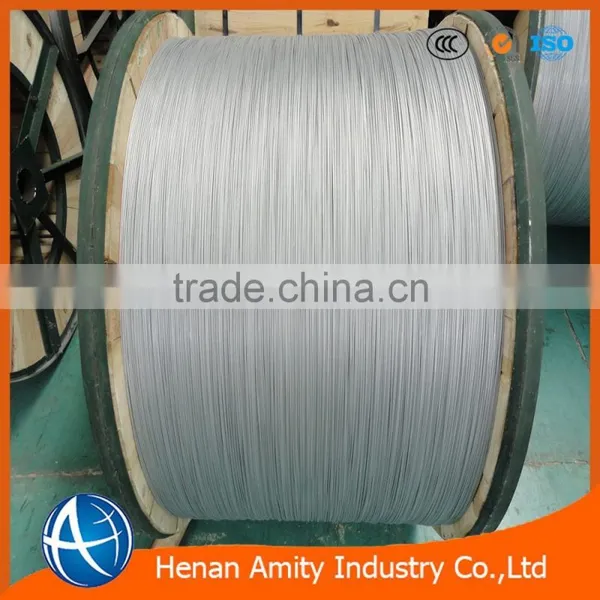

Help CenterHigh Corrosion &Tensile Strength ACS Stranded Aluminum Clad Steel Wire
Related Products
-
ASTM A475 EHS Hot Dipped Galvanized High Tensile Steel WireUS$ 600 - 1,200MOQ: 1 Metric Ton -
ASTM A 475 3 / 8 Ehs Guy Wire Galvanized SteelUS$ 600 - 1,200MOQ: 1 Metric Ton
-
15%-40% 25mm2 35mm2 High Tensile Strength Stranded Copper Clad Steel WireUS$ 1 - 3MOQ: 250 Kilograms
-
30% 40% Conductivity Copper Clad Steel Ground WireUS$ 1 - 3MOQ: 300 Kilograms
-
High Tensile Strength GSW 3/8" Galvanized Steel Wire PriceUS$ 600 - 1,200MOQ: 1 Metric Ton
Aluminum clad steel wire
Application:
1.Reinforcing wire of OPGW
2.Steel core of transmission line conductor(ACSR/AW);
3.Overhead ground wire
4. messanger wire for electrified railways
Constructions
Aluminum clad steel wire is composed of round reinforced steel and uniform aluminium layer outside.
it has good conductivity,corrosion resistance,high frequency transmission performance of aluminum
and high strength of steel.
Conductivity: 20.3%,23%,27%,30%33%,40%.
Standard:GB/T 1179;GB/T 17937,IEC 61232,ASTM B415; ASTM B416,DIN 48201
| ASTM B415-1998 | |||||||
| Nominal Diameter | Area |
Min. Tensile Strenght |
Calculated Breaking Load |
Min. Coating Thickness |
Max.D.C.Resistance at 20°C | Weight | |
| mm | AWG | mm2 | Mpa | kN | mm | Ω/km | kg/km |
| 2.052 | 12 | 3.307 | 1340 | 4.5 | 0.103 | 25.64 | 21.8 |
| 2.304 | 11 | 4.169 | 1340 | 5.6 | 0.115 | 20.34 | 27.49 |
| 2.589 | 10 | 5.26 | 1340 | 7.1 | 0.13 | 16.12 | 34.66 |
| 2.904 | 9 | 6.633 | 1340 | 8.9 | 0.145 | 12.78 | 43.65 |
| 3.264 | 8 | 8.367 | 1340 | 11.2 | 0.163 | 10.14 | 55.14 |
| 3.477 | 7 | 9.495 | 1310 | 12.4 | 0.174 | 8.93 | 62.57 |
| 3.665 | 7 | 10.55 | 1280 | 13.5 | 0.183 | 8.04 | 69.48 |
| 3.934 | 6 | 12.16 | 1240 | 15.1 | 0.197 | 6.93 | 80.13 |
| 4.115 | 6 | 13.3 | 1210 | 16 | 0.206 | 6.38 | 87.62 |
| 4.392 | 5 | 15.15 | 1170 | 17.7 | 0.22 | 5.6 | 99.84 |
| 4.62 | 5 | 16.76 | 1140 | 19.1 | 0.231 | 5.06 | 110.5 |
| 4.775 | 4 | 17.91 | 1100 | 19.7 | 0.239 | 4.73 | 118 |
| 5.189 | 4 | 21.15 | 1070 | 22.6 | 0.259 | 4.01 | 139.34 |
ASTM B416
| Code Number | Area | No. of wires | Diameter | Weight | Rated Strength | Max. D.C. Resistance at 20°c | |
| Wire | Cond. | ||||||
| mm2 | mm | mm | kg/km | kN | Ω/km | ||
| 3 No 5Awg. | 50.32 | 3 | 4.62 | 9.96 | 334.1 | 54.42 | 1.699 |
| 3 No 6Awg. | 39 | 3 | 4.11 | 8.87 | 265 | 45.74 | 2.142 |
| 3 No 7Awg. | 31.65 | 3 | 3.67 | 7.9 | 210.1 | 38.36 | 2.701 |
| 3 No 8Awg. | 25.1 | 3 | 3.26 | 7.03 | 166.7 | 32.06 | 3.406 |
| 3 No 9Awg. | 19.9 | 3 | 2.91 | 6.26 | 132.2 | 25.43 | 4.294 |
| 3 No 10Awg. | 15.78 | 3 | 2.59 | 5.58 | 104.8 | 20.16 | 5.415 |
| 7 No 5Awg. | 117.4 | 7 | 4.62 | 13.9 | 781.1 | 120.27 | 0.7426 |
| 7 No 6Awg. | 93.1 | 7 | 4.11 | 12.4 | 619.5 | 101.14 | 0.9198 |
| 7 No 7Awg. | 73.87 | 7 | 3.67 | 11 | 491.1 | 84.81 | 1.16 |
| 7 No 8Awg. | 58.56 | 7 | 3.26 | 9.78 | 389.6 | 70.88 | 1.463 |
| 7 No 9Awg. | 46.44 | 7 | 2.91 | 8.71 | 308.9 | 56.2 | 1.844 |
| 7 No 10Awg. | 36.83 | 7 | 2.59 | 7.76 | 245.1 | 44.58 | 2.325 |
| 7 No 11Awg. | 29.21 | 7 | 2.3 | 6.91 | 194.4 | 35.35 | 2.932 |
| 7 No 12Awg. | 23.16 | 7 | 2.05 | 6.16 | 154.2 | 28.03 | 3.697 |
| 19 No 5Awg. | 318.7 | 19 | 4.62 | 23.1 | 2129 | 326.39 | 0.2698 |
| 19 No 6Awg. | 252.7 | 19 | 4.11 | 20.6 | 1688 | 274.55 | 0.3402 |
| 19 No 7Awg. | 200.4 | 19 | 3.67 | 18.3 | 1339 | 230.18 | 0.429 |
| 19 No 8Awg. | 158.9 | 19 | 3.26 | 16.3 | 1062 | 192.41 | 0.5409 |
| 19 No 9Awg. | 126.1 | 19 | 2.91 | 14.5 | 842 | 152.58 | 0.6821 |
| 19 No 10Awg. | 99.96 | 19 | 2.59 | 12.9 | 667.7 | 121 | 0.8601 |
Services
Why choose us?
Guarantees
1) Factory Direct and on-time shipment.
2) Finest available raw materials,Strict quality control system
3) Customized sizes,OEM are accepted!
4) Goods are sold with rerun or refund guarantee due to quality issue!
Shipping terms
1) We accept terms of delivery EXW, FOB, CFR, CIF, DDU, DDP, etc
2) Sample time: Nearby 3-5days, distance 5-7days.
3) Production time: 10-30days(Depends on the Qty) upon advanced payment received

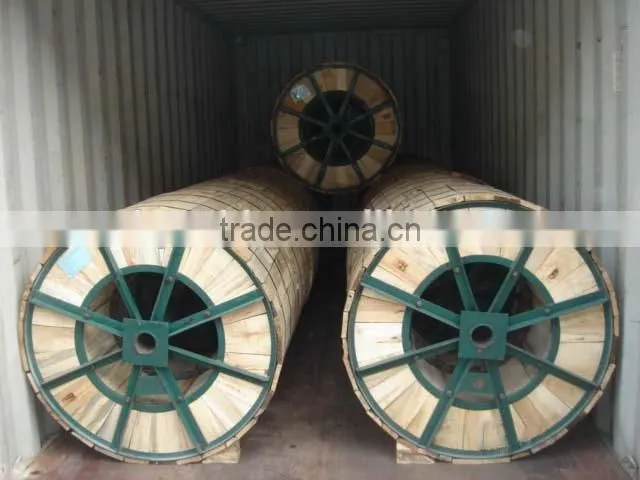

4) Packing: export standard cartons,drums or customized as per customers’ request
FAQ
[Q] What’s your company 's principle products?
[A] Wire & cable:
Electric wire;Power cable 35kv or below;Overhead bare conductor AAC,ACSR,AAAC,ACAR,AACSR;
Aerial bundle cable; Control cable;Rubber cable& Welding cable
Winding wire/magnet wire
Enameled copper,aluminum,cca wire;Paper covered wireFiberglass covered wire
Galvanized steel wire&strands
[Q] How about your company's production capacity?
[A] Wire& cable:5000km per month
Winding wire/magnet wire:1000 tons per month
Galvanized steel wire&strands:2000 tons per month
[Q] Is there a regular management review of Quality performance Indicators
– Customer satisfaction, on time delivery, Supplier quality, in house scrap ,
in house rejects, Customer returns, etc. ?
[A] Yes, we have for all the ones listed above
[Q] How can I get a sample to check your quality?
[A] After price confirmation, you can require for samples to check our quality.
Sample is free,but the freight charge should be paid.
[Q] what payment terms you can accept?
[A] The payment terms we usually operated is L/C,T/T with deposit and the Payapl,Western Union,
VISA MASTER CARD for small count of order.
