Specifications
copper clad steel wire1.Conductiviry:15%-40%
2.Dia:0.10-4.0mm,3,7,19 37 strands
3.Area:10-500mm2
3.Good price

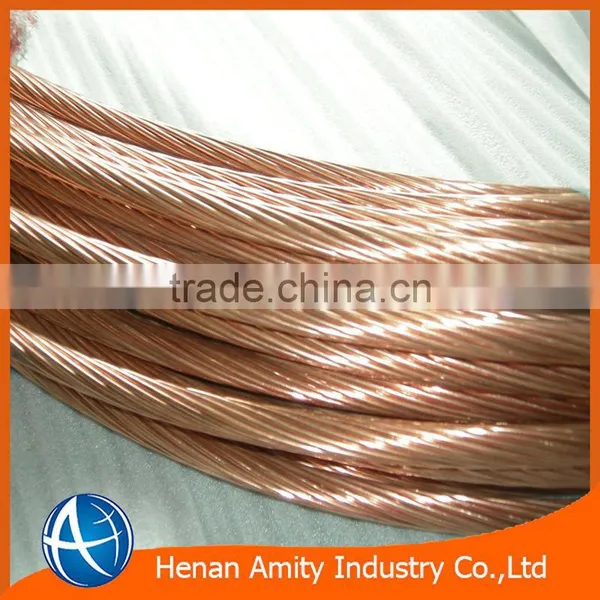

copper clad steel wire
Copper clad steel wire is made up od plating uniform copper on the surface of high-quality low-carbon steel wire,the metallic cohension is perfectly combined of copper and steel core,and there will be no flaking off during the hat treatment or mechanical wokout.The CCS wire is the best new bimetal wire instead of pure copper wire.
Diameter of Single wire: 0.10-4.0mm
No of Strands:3,7,19,37
Cross section Area of stranded wire:10-500mm2
CCS wire can be divided into six types by conductivity, 15%CCS,18%CCS,21%CCS, 25%CCS, 30%CCS,40%CCS,and two mechanical status: Annealed (A) and Hard drawn(H).
We can supply products with various conductivity and tensile strength upon the requirement of customers.
Standard:
YD/T722-94,
GB 12269-91,
ASTM B 869-04-96,
ASTM B 452-02-93
ASTM B227-04
ASTM B910/13
BS 4084-89
DIN 48201-7
Features:
Shiny&Uniformity
Excellent electrical conductivity
Good corrosion rsistance of copper
High tensule strength
Applications:
Inner conductor of terminal CATV coaxial cable
Conductive cord of user communication cable for double conductor telephones .
Plug-ins for electronic components .
Conductive cord of field wires .
Overhead system for power transmission and telephone lines .
Overhead-contact systems for railway and Light Rail Transit .
Braided shield wire of power cable .
Grounding Rod for electrical power industry .
Packing:
Plastic Spool
Iron Spool
Plywood bobbin
