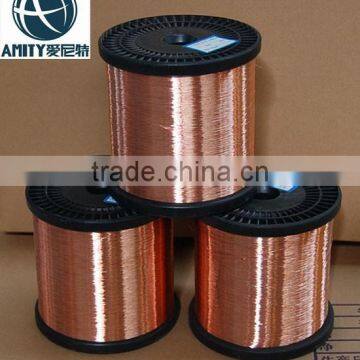

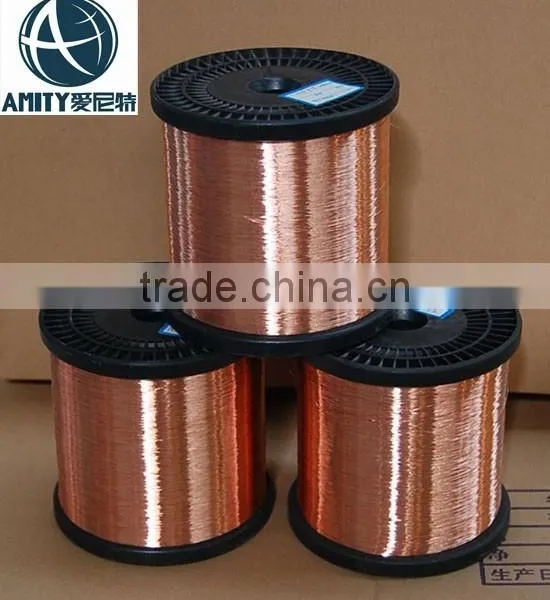

Polyurethane Enameled Round Copper Wire
US$ 8 - 11
MOQ: 100 Kilograms
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Amity or OEM
Model Number:
UEW enameled round copper wire
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UL Approved Round Enameled Aluminium Wire AWG16US$ 3 - 5MOQ: 500 Kilograms -
UL Certificate Enamel Insulated Copper Wire PricesUS$ 7.5 - 12MOQ: 200 Kilograms
-
0.08mm Solderable Polyurethance Enameled Copper WireUS$ 7.5 - 10MOQ: 200 Kilograms
-
Single Coat and Double Coat Aluminum Enameled Wire PriceUS$ 3 - 6.5MOQ: 500 Kilograms
-
Super Flat Enamel Aluminium Wire PriceUS$ 2.5 - 5MOQ: 200 Kilograms
Place of Origin
Henan, China
Brand Name
Amity or OEM
Model Number
UEW enameled round copper wire
Type
Insulated
Application
Other, rewinding in communication,acoustics,relay,mini-transformer
Conductor Material
Copper
Conductor Type
Solid
Insulation Material
Enameled

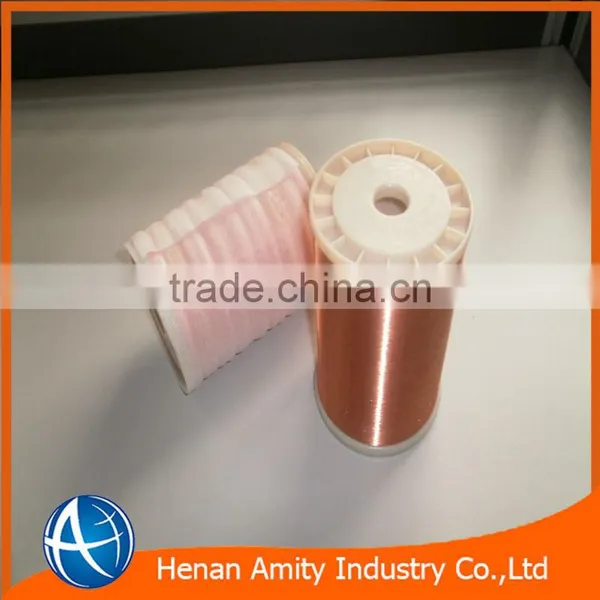

Enameled round copper wire
We mainly supply solderable polyurethance enameled round copper wire class 130(C),class 155(F),
class 180(H) with size of 0.03mm-5.0mm.
Solderable copper magnet wire class 130
Model :UEW130
standard: GB/T6109.4-2008 &IEC60317-4 :2000& MW 75-C
Solderable copper magnet wire class 155
Model:UEW155
standard: GB/T 6109.10-2008& IEC60317-20:2000 & MW 79-C
Solderable copper magnet wire class 180
Model:UEW180
standard: GB/T 6109.23-2008& IEC60317-51:2001 & MW 82-C
Features:
1. Excellent solderability that can be soldered without removal of coating.
2. Small tg δ value under high
frequency electronic apparatus.
3. Easy to be dyed to different colors for identifying purpose when soldered.
2. Small tg δ value under high
frequency electronic apparatus.
3. Easy to be dyed to different colors for identifying purpose when soldered.
Applications:
used for rewinding in communication,acoustics,relay,transformer of mini-type and household appliances
Name |
Enameled Copper Wire |
|||
Type |
QA-1/155 2UEW/155 |
|||
Diameter |
AWG46(0.04mm) |
|||
Standard |
IEC60317-20-2000/GB6109.10-2008 |
|||
Test Item |
Unit |
Technical Requirement |
Test Result |
|
Appearance |
|
bright and clean, Uniform color, |
Ok |
|
Size |
Conductor Diameter |
mm |
0.040±0.003 |
0.039 |
Thickness of insulation film |
mm |
0.004-0.011 |
0.008,0.008,0.007 |
|
Overall Diameter |
mm |
≤0.049 |
0.047,0.047,0.046 |
|
Mechanical properties |
Elongation |
% |
≥12 % |
17.8%,19.5%,18.8% |
Flexibility and adhesion |
winding test |
1D,no crack |
ok |
|
Jerk test |
No Crack, and No losing adhesion |
ok |
||
Thermal propeties |
heat shock |
|
125°C,crack free |
140°C,139°C,141°C,crack free |
Electrical properties |
DC resistance at 20°C |
Ω/m |
12.280-14.920 |
14.11,14.12,14.10 |
Breakdown Voltage |
V |
≥550V |
1800,1600,1700 |
|
Enamel Film continuity |
|
≤60 /30m |
0,0,0 |
|
Solder experiment |
|
Smooth,no welding slag &pin hole in the sloder pot of 390±5°C for 2S |
Ok |
|
Pin-hole |
|
5m≤4 |
1,1,1 |
|
Quality Control Result |
|
Ok |
||
