Insulated copper wire prices
We can supply enamel insulated copper wire from 130 to 200 degree..
Specifications
1)Thermal class:130/155/180/200
2) Dia:0.03-5.0mm
3) Standard:IEC,MW,GB
4) Certificate:ISO,SGS,UL,Rohs
5) fast shipment
Features:
enamel insulated copper wire is high resistance to heat shock, high temperature
and good performace at softening breakdown, suitable for high-speed
automated routing, able to be direct weld, with no pinhole, resistive to high frequency,
wearing, refrigerants and electronics corona, high breakdown voltage, small dielectric
loss angle , dozens of times on pulse life as the ordinary compound enamel-insulated wire.
Application areas:
This product is widely used in electrical tools, ballasts, automotive electronics,refrigerator
and air conditioner compressor motors,television sets, electric stove, microwave ovens various transformers, and other kinds of electronic coil motors, electrical appliances..
Type,Code,Thermal Classification
Category |
Enamel type |
Code |
Thermal classification |
single coat |
polyurethane |
UEW |
130 |
UEWF |
155 |
||
polyester |
PEW |
155 |
|
polyester-imide |
EIW |
180 |
|
polyamide-imide |
AIW |
220 |
|
Dual coat |
self-bonding polyurethane |
SB UEW |
130 |
self-bonding polyester-imide |
SB EIW |
180 |
|
polyurethane over coated with polyamide |
UEW-NY |
130 |
|
UEWF-NY |
155 |
||
polyester over coated with polyamide |
PEW-NY |
155 |
|
PEWH-NY |
180 |
||
polyester-imide over coated with polyamide-imide |
EIW-AL |
200 |

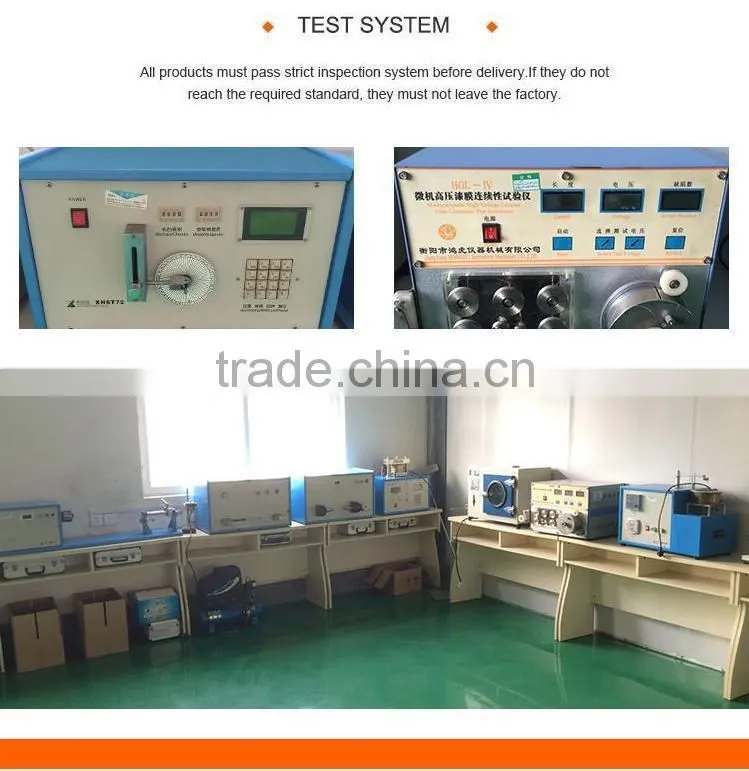

Testing
Name |
Enameled Copper Wire |
|||
Type |
Q(ZY/XY)-2/200 |
|||
Diameter |
1.600 mm |
|||
Standard |
IEC60317-13 |
|||
Test Item |
Unit |
Technical Requirement |
Test Result |
|
Appearance |
|
bright and clean, Uniform color, |
Ok |
|
|
Conductor Diameter |
mm |
1.600±0.016 |
1.60 |
Thickness of insulation film |
mm |
>= 0.077 |
0.090 |
|
Overall Diameter |
mm |
<=1.706 |
1.690 |
|
Mechanical properties |
Elongation |
|
>=32 % |
37% |
spring-back angle |
|
<=30 |
27 |
|
Flexibility and adhesion |
winding test |
1D,no crack |
ok |
|
Jerk test |
No Crack, and No losing adhesion |
ok |
||
scratch resisting(Average) |
N |
14.9 |
16.9 |
|
scratch resisting(Min) |
N |
12.6 |
15.4 |
|
Thermal propeties |
heat shock |
N |
220°C,crack free |
ok |
cut-through resistance |
N |
320°C, 2Min no breakdown |
ok |
|
Chemical resistance |
Resistance to solvent |
H |
1H |
2H |
Electrical properties |
DC resistance at 20°C |
Ω/m |
0.008264-0.008748 |
0.008640 |
Breakdown Voltage |
KV |
>=5.0 kV |
8.9kv |
|
Enamel Film continuity |
|
<=5 /30m |
0 |
|
package |
|
Meet the export standards |
Ok |
|
Quality Control Result |
|
Ok |
||
Packing:
inner packing: different plastic spools according to wire sizes
outer packing: cartons,wooden cases or as per the customers' request
Services
Why choose us?
Guarantees
1) Factory Direct and on-time shipment.

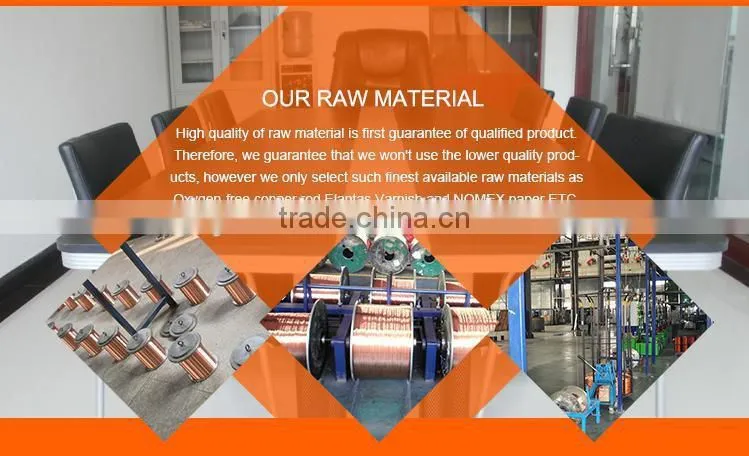

2) Finest available raw materials,Strict quality control system
3) Customized sizes,OEM are accepted!
4) Goods are sold with rerun or refund guarantee due to quality issue!
Shipping terms
1) We accept terms of delivery EXW, FOB, CFR, CIF, DDU, DDP, etc
2) Sample time: Nearby 3-5days, distance 5-7days.
3) Production time: 10-30days(Depends on the Qty) upon advanced payment received
4) Packing: export standard cartons,drums or customized as per customers’ request
FAQ
[Q] What’s your company 's principle products?

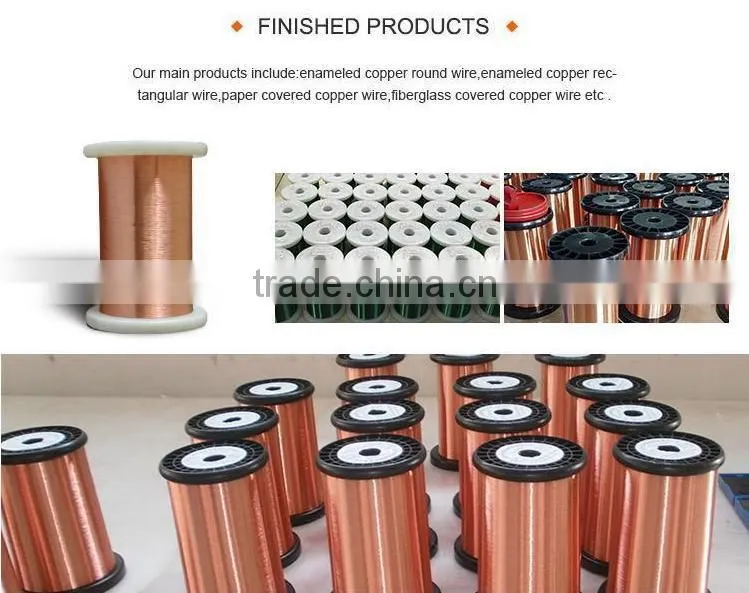

[A] Wire & cable:
Electric wire;Power cable 35kv or below;Overhead bare conductor AAC,ACSR,AAAC,ACAR,AACSR;
Aerial bundle cable; Control cable;Rubber cable& Welding cable
Winding wire/magnet wire
Enameled copper,aluminum,cca wire;Paper covered wireFiberglass covered wire
Galvanized steel wire&strands
[Q] How about your company's production capacity?
[A] Wire& cable:5000km per month
Winding wire/magnet wire:1000 tons per month
Galvanized steel wire&strands:2000 tons per month
[Q] Is there a regular management review of Quality performance Indicators
– Customer satisfaction, on time delivery, Supplier quality, in house scrap ,
in house rejects, Customer returns, etc. ?
[A] Yes, we have for all the ones listed above
[Q] How can I get a sample to check your quality?
[A] After price confirmation, you can require for samples to check our quality.
Sample is free,but the freight charge should be paid.
[Q] what payment terms you can accept?
[A] The payment terms we usually operated is L/C,T/T with deposit and the Payapl,Western Union,
VISA MASTER CARD for small count of order.
