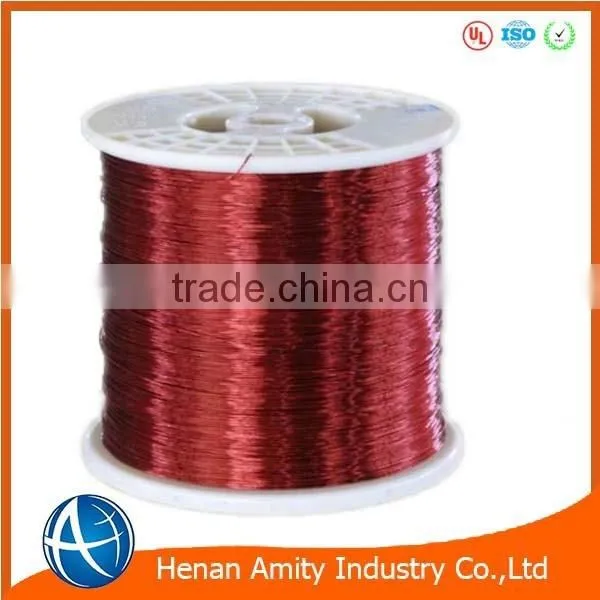

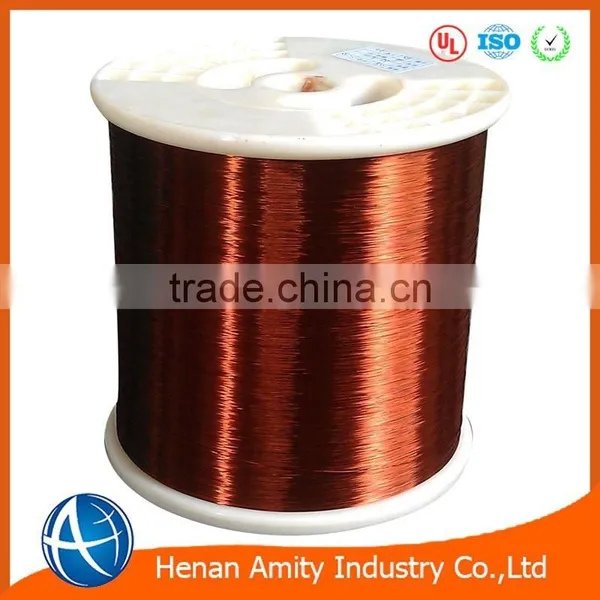

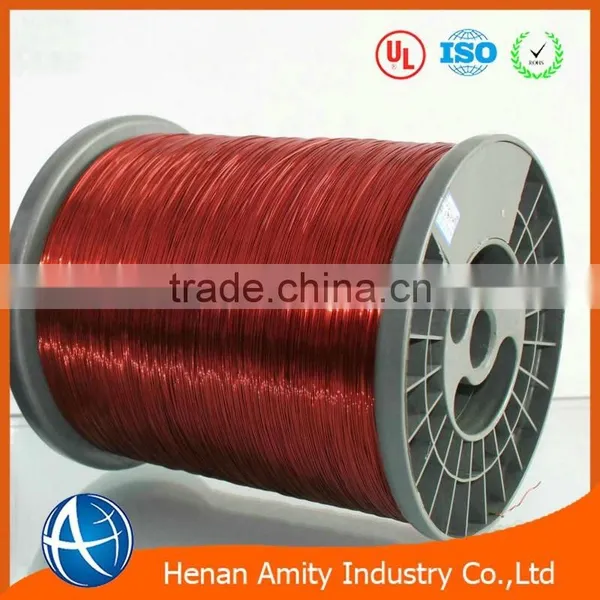

1mm enameled copper wire price
We can supply super 1mm enameled copper wire class 130,155,180,200 with cost price & UL,Rohs,ISO certificate.
Specifications
Type |
1.Copper enameled wire 2.Aluminum enameled wire pper clad aluminum enameled wire |
Insulation material |
1.Polyester 2.Polyurethane 3.Polyesterimide 4.Polyamide-imide |
Thermal class |
130:PEW;UEW 155:PEWF;UEW 180:UEW;EIW 200:EIW-AI |
Diameter |
1.Copper enameled round wire:0.04mm-4mm(AWG6-AWG46/SWG8-SWG48) 2.Aluminum enameled round wire:0.12mm-4mm(AWG6-AWG36/SWG8-SWG39) pper clad aluminum round enameled wire:0.2mm-5mm(AWG4-AWG32/SWG5-SWG34) 4.Flat wire:0.8-5.6,b:2.0-16(mm) |
shape |
Round Flat |
Thickness of covering material |
Grade 1 Grade 2 Grade3 Or upon your request |
Certificate |
ISO9002,ISO14000,ROHS,CTI environmental approved,UL approved. Our enamelled copper wires have got UL and SGS certifications. |
Features |
Excellent resistance to abrasion and solvent, Excellent electricity performance Excellent heat shock, adherence and flexibility, Able to bear refrigerant |
Applications |
.Electrical machinery,transformer , generator .Electrical motor windings, exhaust fan .Air-conditioner, washing-machine, compressor |
Packing details |

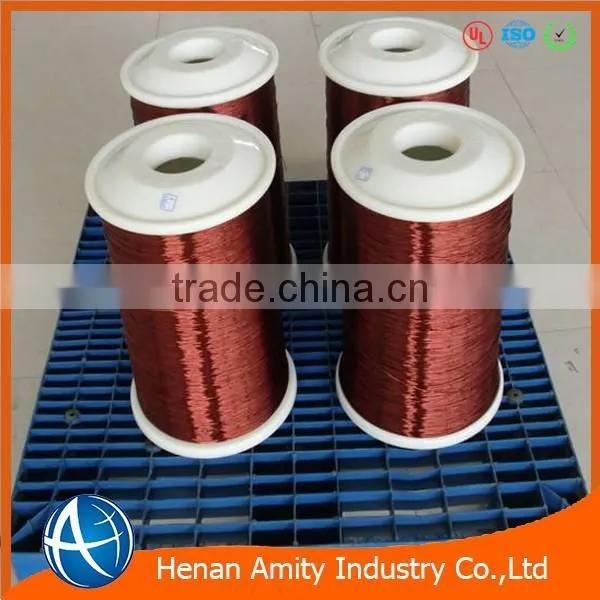

inner packing:Different plastic spools according to wire sizes outer packing:cartons or as per Customers Requirement |
Test report
Name |
Enameled Copper Wire |
|||
Type |
Q(ZY/XY)-2/200 (EI/AIW) |
|||
Diameter |
1.600 mm |
|||
Standard |
IEC60317-13 |
|||
Test Item |
Unit |
Technical Requirement |
Test Result |
|
Appearance |
|
bright and clean, Uniform color, |
Ok |
|
|
Conductor Diameter |
mm |
1.600±0.016 |
1.60 |
Thickness of insulation film |
mm |
>= 0.077 |
0.090 |
|
Overall Diameter |
mm |
<=1.706 |
1.690 |
|
Mechanical properties |
Elongation |
|
>=32 % |
37% |
spring-back angle |
|
<=30 |
27 |
|
Flexibility and adhesion |
winding test |
1D,no crack |
ok |
|
Jerk test |
No Crack, and No losing adhesion |
ok |
||
scratch resisting(Average) |
N |
14.9 |
16.9 |
|
scratch resisting(Min) |
N |
12.6 |
15.4 |
|
Thermal propeties |
heat shock |
N |
220°C,crack free |
ok |
cut-through resistance |
N |
320°C, 2Min no breakdown |
ok |
|
Chemical resistance |
Resistance to solvent |
H |
1H |
2H |
Electrical properties |
DC resistance at 20°C |
Ω/m |
0.008264-0.008748 |
0.008640 |
Breakdown Voltage |
KV |
>=5.0 kV |
8.9kv |
|
Enamel Film continuity |
|
<=5 /30m |
0 |
|
package |
|
Meet the export standards |
Ok |
|
Quality Control Result |
|
Ok |
||
Services
Why choose us?
Guarantees
1) Factory Direct and on-time shipment.
2) Finest available raw materials,Strict quality control system
3) Customized sizes,OEM are accepted!
4) Goods are sold with rerun or refund guarantee due to quality issue!
Shipping terms
1) We accept terms of delivery EXW, FOB, CFR, CIF, DDU, DDP, etc
2) Sample time: Nearby 3-5days, distance 5-7days.
3) Production time: 10-30days(Depends on the Qty) upon advanced payment received
4) Packing: export standard cartons,drums or customized as per customers’ request
FAQ
[Q] What’s your company 's principle products?
[A] Wire & cable:
Electric wire;Power cable 35kv or below;Overhead bare conductor AAC,ACSR,AAAC,ACAR,AACSR;
Aerial bundle cable; Control cable;Rubber cable& Welding cable
Winding wire/magnet wire
Enameled copper,aluminum,cca wire;Paper covered wireFiberglass covered wire
Galvanized steel wire&strands
[Q] How about your company's production capacity?
[A] Wire& cable:5000km per month
Winding wire/magnet wire:1000 tons per month
Galvanized steel wire&strands:2000 tons per month
[Q] Is there a regular management review of Quality performance Indicators
– Customer satisfaction, on time delivery, Supplier quality, in house scrap ,
in house rejects, Customer returns, etc. ?
[A] Yes, we have for all the ones listed above
[Q] How can I get a sample to check your quality?
[A] After price confirmation, you can require for samples to check our quality.
Sample is free,but the freight charge should be paid.
[Q] what payment terms you can accept?
[A] The payment terms we usually operated is L/C,T/T with deposit and the Payapl,Western Union,
VISA MASTER CARD for small count of order.
