Home > Products > Magnet Wire > Enameled thick copper wire

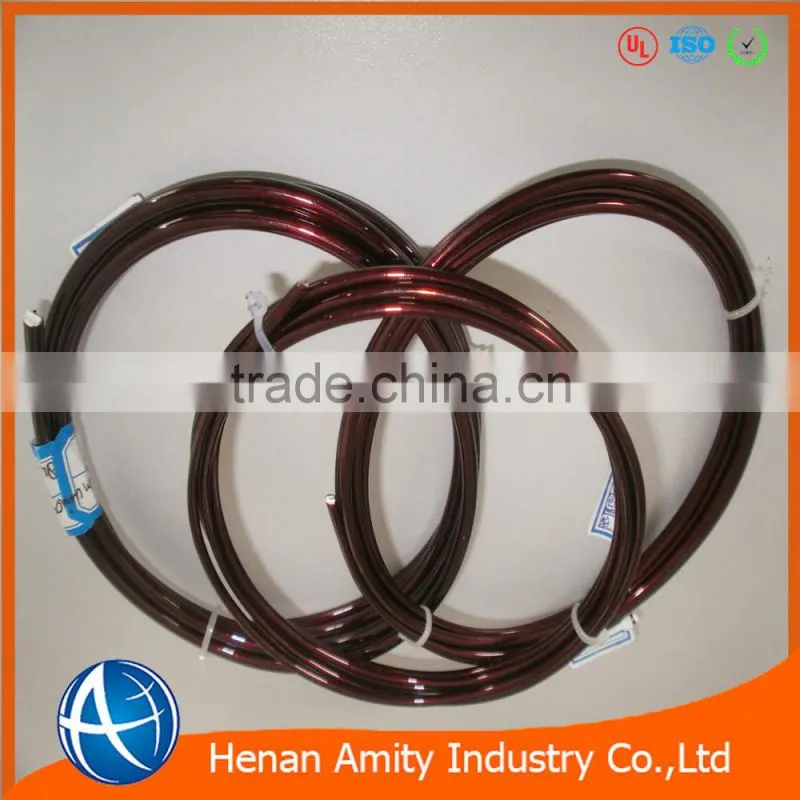

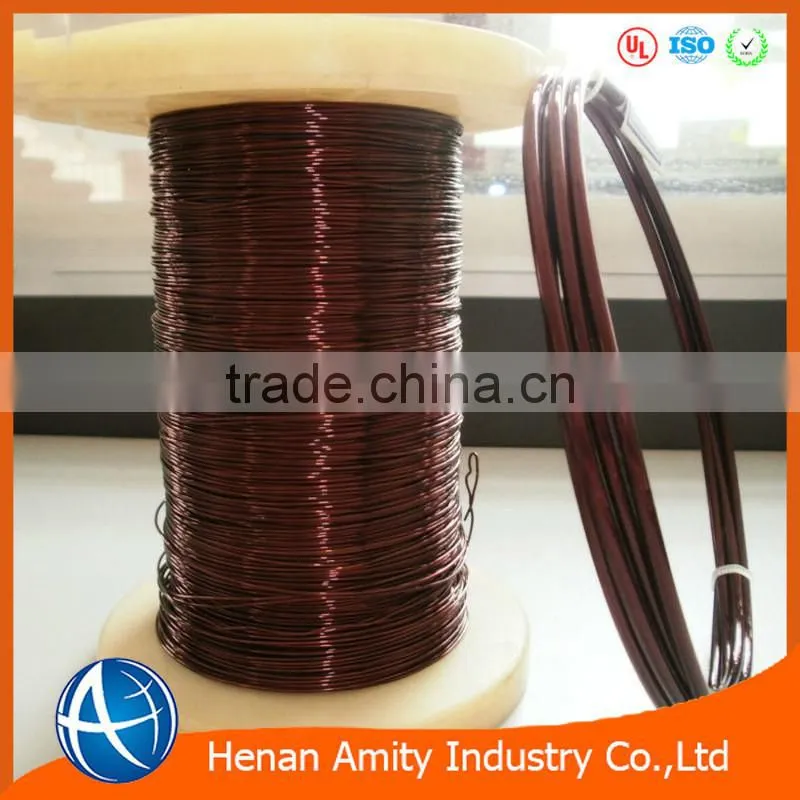

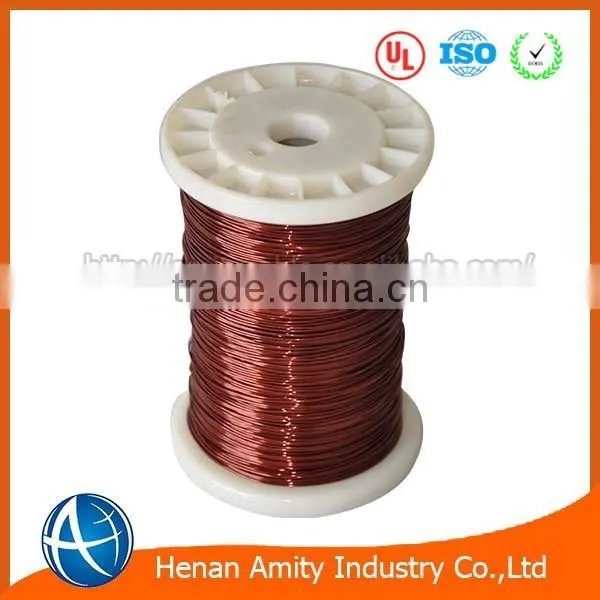

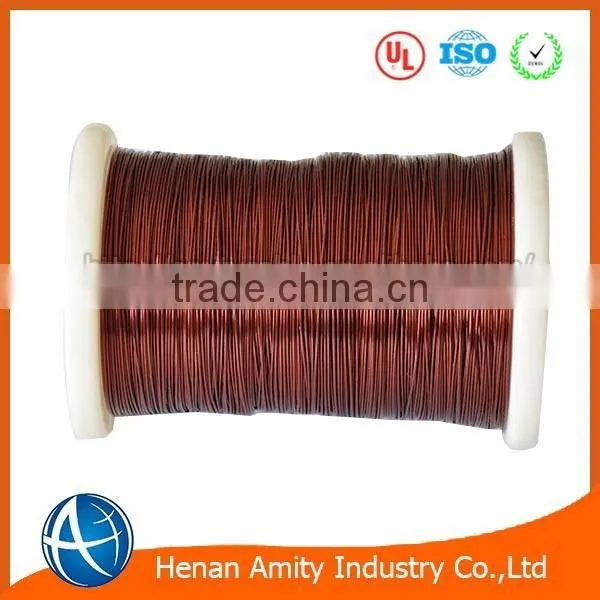

Enameled thick copper wire
- 40000 Ton / Tons per Month
- Qingdao/Shanghai
- T/T L/C D/P D/A
You May Like
-
SGS approved copper or aluminum flat wire winding
-
Gold seller! UL certificate high temperature motor winding wires
-
Cost price UL certificate class 200 polyester or polyester-imide overcoated polyamide-imide 1mm enameled copper wire
-
UL certificate enameled 1.5 mm copper wire
-
UL certificate Magnet Wire 30 Gauge
-
Enameled rectangular copper winding wire for motor and transformer
Product Details
Place of Origin | Henan, China | Brand Name | Amity or OEM | |
Model Number | PEW/UEW/EIW/EI/AIW thick copper wire | Type | Insulated | |
Application | Other, motors,transformers,refregerators,appliances etc. | Conductor Material | Copper | |
Conductor Type | Solid | Insulation Material | Enameled |
Product Description
Thick copper wire
We can supply a wide range of thick copper wire with high quality&competitive price.
1) Theramel index: B 130°c, F 155°c, H180°c,H+200°c
2) conductor:copper
3) coated material: polyester, polyurethane, polyester-imide,polyamide-imide
4) Model: PEW,UEW,EIW,AIW
5) shape: round or flat
6) Size:0.03mm-5.0mm
7) standards:JISC,IEC,NEMA,GB or as client's demands.
8) certificate:ISO9002,ISO14000,Rohs,CTI environmental approved,UL approved
9) packing:
Inner packing: Different plastic spools according to wire sizes
Outer packing: Carton or as customer required.
Type,Code,Thermal Classification
Category | Enamel type | Code | Thermal classification |
single coat | polyurethane | UEW | 130 |
UEWF | 155 | ||
polyester | PEW | 155 | |
polyester-imide | EIW | 180 | |
polyamide-imide | AIW | 220 | |
Dual coat | self-bonding polyurethane | SB UEW | 130 |
self-bonding polyester-imide | SB EIW | 180 | |
polyurethane over coated with polyamide | UEW-NY | 130 | |
UEWF-NY | 155 | ||
polyester over coated with polyamide | PEW-NY | 155 | |
PEWH-NY | 180 | ||
polyester-imide over coated with polyamide-imide | EIW-AL | 200 |
Services
Why choose us?
Guarantees
1) Factory Direct and on-time shipment.
2) Finest available raw materials,Strict quality control system
3) Customized sizes,OEM are accepted!
4) Goods are sold with rerun or refund guarantee due to quality issue!
Shipping terms
1) We accept terms of delivery EXW, FOB, CFR, CIF, DDU, DDP, etc
2) Sample time: Nearby 3-5days, distance 5-7days.
3) Production time: 10-30days(Depends on the Qty) upon advanced payment received
4) Packing: export standard cartons,drums or customized as per customers’ request
FAQ
[Q] What’s your company 's principle products?
[A] Wire & cable:
Electric wire;Power cable 35kv or below;Overhead bare conductor AAC,ACSR,AAAC,ACAR,AACSR;
Aerial bundle cable; Control cable;Rubber cable& Welding cable
Winding wire/magnet wire
Enameled copper,aluminum,cca wire;Paper covered wireFiberglass covered wire
Galvanized steel wire&strands
[Q] How about your company's production capacity?
[A] Wire& cable:5000km per month
Winding wire/magnet wire:1000 tons per month
Galvanized steel wire&strands:2000 tons per month
[Q] Is there a regular management review of Quality performance Indicators
– Customer satisfaction, on time delivery, Supplier quality, in house scrap ,
in house rejects, Customer returns, etc. ?
[A] Yes, we have for all the ones listed above
[Q] How can I get a sample to check your quality?
[A] After price confirmation, you can require for samples to check our quality.
Sample is free,but the freight charge should be paid.
[Q] what payment terms you can accept?
[A] The payment terms we usually operated is L/C,T/T with deposit and the Payapl,Western Union,
VISA MASTER CARD for small count of order.
