Single Layer Aluminum LED PCB Circuit Board for LED Corn Light 0.4mm ~ 3mm

Negotiable MOQ: 1 Kilogram (Price negotiable depending on order volume and customization)

Key Specifications

Business Type:

Trading Company

Total Employees:

101 - 200 People

Main Markets:

North America, South America, Eastern Europe

Shenzhen Jianhongda Technology Company

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

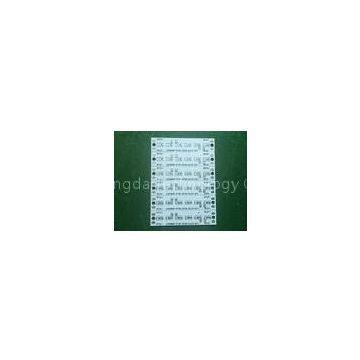

Single layer Aluminum LED PCB Circuit Board for LED Corn Light 0.4mm ~ 3mm

Specifications

Base Material: Aluminum

Layer: 1 layer

Board Thickness: 0.4mm~3mm

Board Dimension: Diameter 76mm + 100x15mm,120x15mm(it can be customized)

Copper layer: 1oz

Solder Mask: White

Silkscreen: Black

Surface finish: LF HAL

Outline Profile: CNC routing/V-Cut/Punching

All of the parameters can be customized!

Applications

It can be use 2835,5630,3014,2323,3535,1W high power LEDs

Special for 6W,9W,12W,15W,24W,30W,40W,60W,80W LED Corn Light

Lead Time

Samples: 3-4 days

Mass Production: 7-15 days(depend on the quantity)

Payment Terms

T/T,Western Union

Packing and Shipment

Vacuum package in carton

Factory Capability

Item	Manufacturing Capability
Surface Treatment	OSP Immersion Gold Immersion Silver Immersion Tin Lead Free HAL Plating Silver
PCB Layer Type	Single side,Double side
Max. Working Panel Size	1500mm*600mm
Min. Working Panel Size	4mm*4mm
AL Substrate Thickness	0.3mm-4mm
Min. Conductor width	0.15mm
Min. Conductor spacing	0.15mm
Min. Drilling hole size	0.2mm
Plate Thickness Tolerance	±0.1mm
Finished Panel Tolerance	±0.1mm
V-CUT Alignment	±0.1mm
Hole Dia Tolerance	±0.05mm
Hole Position Tolerance	±0.076mm
Finished Copper Thickness	35um-105um(1oz-6oz)
Etching Under Cut	>/=2.0
PTH&Panel Plating Uniformity	>90%
Eing/Flash Gold Thickness	1-5u’’
Solder Mask Thickness	15um-35um
Min. Solder Mask Bridge	0.076mm(3mil)
Silk Screen	White/Black(depend on your requirements)
Thermal Conductivity	1.0~20W/MK
Withstand Voltage	AC 2000V,DC 1500~4000V
