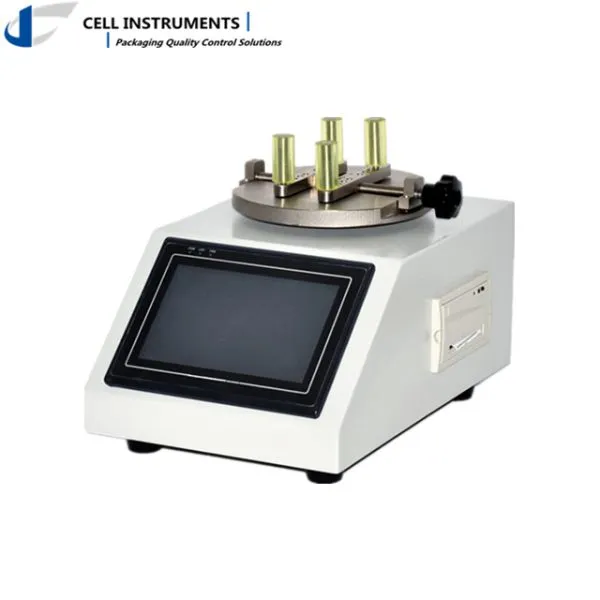

Screwing and unscrewing Motorised bottle cap torque tester is for the locking and opening force test of bottle caps and can be operated in clockwise and counterclockwise directions.
Screwing and unscrewing Motorised bottle cap torque tester conforms to standards: ASTM D2063, ASTM D3198, ASTM D3474
Technical features
● PLC control unit and touch screen operation
● Both locking & opening force can be measured
● Static & rotatory torque measuring up to 10 Nm
● Test parameter and data storage
● Automatic rotating
● Micro-printer
● RS232 port and professional software (optional)
| Test Range | 10 Nm (Standard) |
| Accuracy | 1% FS |
| Clamp Range | 15mm-140mm |
| Speed Range | 0.01～15RPM |
| Dimension | 340 mm (L) x 430 mm (W) x 750 mm (H |
conforms to standards:
ASTM D2063, ASTM D3198, ASTM D3474, DIN EN
● PLC control unit and touch screen operation
● Both locking & opening force can be measured
● Static & rotatory torque measuring up to 10 Nm
● Test parameter and data storage
● Automatic rotating
● Micro-printer
● RS232 port and professional software (optional)
| Test Range | 10 Nm (Standard) |
| Accuracy | 1% FS |
| Clamp Range | 15mm-140mm |
| Speed Range | 0.01～15RPM |
| Dimension | 340 mm (L) x 430 mm (W) x 750 mm (H |
