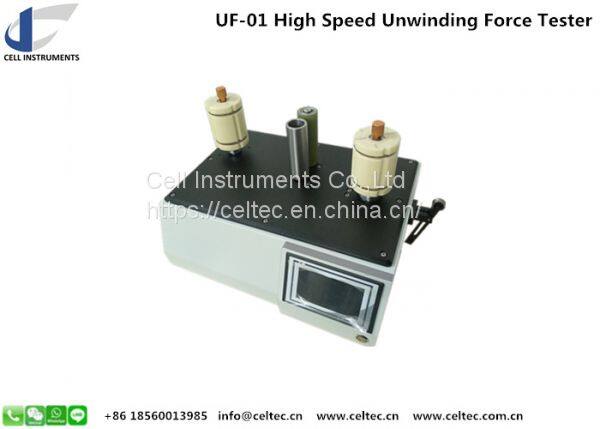

Pressure Sensitive Tape High Speed Unwinding Force Tester
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Cell Instruments
Place of Origin:
China
Model Number:
UF-01
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
10 days
Related Products
-
Wrapping Film Cling Peel Force Tester ASTM D 5458US$ 2000 - 6000MOQ: 1 Set -
Haze Meter and Light Transmittance TesterNegotiableMOQ: 1 Set
-
ASTM F392 Flex Durability Tester Gelbo Flex Durability TesterNegotiableMOQ: 1 Set
-
Flex Durability Tester ASTM F392 Gelbo Flex Durability TesterNegotiableMOQ: 1 Set
-
ASTM F392 Gelbo Flex Durability Tester Flex Durability Tester CELL INSTRUMENTSNegotiableMOQ: 1 Set
Brand Name
Cell Instruments
Place of Origin
China
Model Number
UF-01
Power
Electronic
Usage
Plastic Testing Machine
Pressure sensitive tape high speed unwinding force tester peels off an entire roll of adhesive tape with high speed and the strength change can be detected and observed. At the same time, the peel force can be analyzed in the process.
High speed unwinding force tester Standards: PSTC-13, ASTM D1000
High speed unwinding force tester Technical data
| Specimen Size | Reel Diameter 75mm, Width 75mm(customization available). Max Outer Dia 300mm |
| Loadcell | 10kg, 20kg and 50kg are optional |
| Force Resolution | 1/300000 |
| Software | Automatic Recording of Time Unwound 25%,50% and 75% force value |
| Dimensions | 50*40*30cm |
| Motor | Servo Type |
| Control | PLC and 7 inch touch screen |
| Power | 1/2 PH, AC220V( or 110V), 5A |
