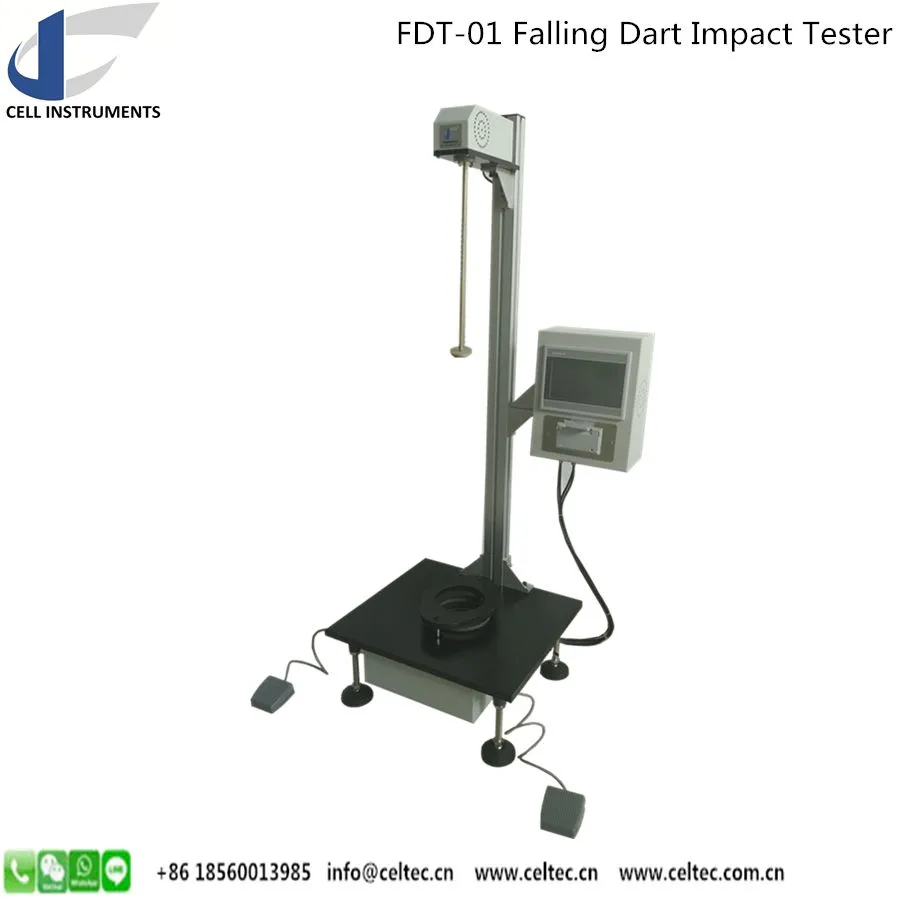

Free Falling Dart Impact Tester evaluates the resistance performance of plastic films, sheets, films, foils, paper, with less than 1mm thickness. Impact tests can indicate the material's ability to resist external destruction.
Free Falling Dart Impact Tester key Features
1.PLC control and touch screen operation
2.Method A and Method B are available
3.Test results multi-units display
4.Electromagnetic suspension and automatic release of the falling dart from a fixed position
5.Sample pneumatic clamping
6.Manual and foot switch
7.Micro-printer for data export
8.Professional software(optional)
Technical Data
Test MethodMethod A or Method B(optional)
Test Range Method A: 50~2000g Method B: 300~2000g
Dart Diameter Method A: 38±1mm Method B: 50±1mm
Impact Height660mm/1500mm
Accuracy 0.1g (0.1J)
Specimen Clamp Pneumatic Clamp
Gas Supply 0.6 MPa
Gas Port Size Φ8 mm PU Tubing
Specimen Size > 150 mm x 150 mm
Instrument Dimension Method A: 500 mm (L) x 450 mm (W) x 1200 mm (H)
Method B: 500 mm (L) x 450 mm (W) x 2200 mm (H)
Free Falling Dart Impact Tester Standards
ASTM D1709, ISO 7765-1-1988, JIS K7124-1, GB/T 9639.1-2008
