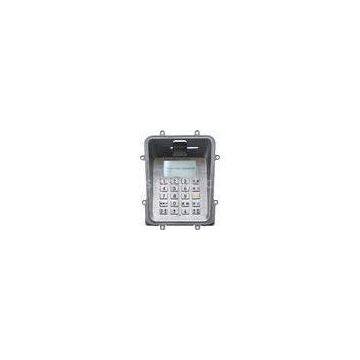

Self - Service ATM, ADM, CDM Unattended Payment Terminal ZT595 by PCI PED Approved
Features
■ High quality stainless steel and polymer keypad
■ High performance ARM9 processor, 64 MB RAM expandable, 64 MB Flash expendable
■ PCI PED approved
■ Linux operating system installed
■ Customized layouts
■ Water-proof, dust-free, vandalism-proof, prevent from tamper drilling, penetration, dismantling, audio monitoring and replacement
■ Encrypted keys and other sensitive data are self destruction when tamper attack.
■ Support DES, Triple DES algorithm and 2048 bit RSA algorithm
■ Support external card reader for Magnetic card payment, IC card payment, and cash payment with EMV L2 compatible.
■ Provide Ethernet interface, USB, RS-232interface and some industrial interfaces such as GPI O and RS485
■ Build-in SAM support
■ Connectors for function keys and beeper
■ Optional GSM/GPRS modem
Applications
■ Financial equipments: ATM, ADM, CDM,self-service Payment Terminal
■ Public equipments: ticket vending machine, automatic vending machine, self-service petrol Terminal
Performance Standards:
■ ISO13491,ISO9564,IBM3624,ANSI X9.8,ANSI X9.9,ANSI X9.19
Approvals
■ ZT595 : PCI Certificate
Capabilities
|
Input keypad |
10 numeric keys, 6 function keys |
|
External keypad |
with connector for 2 bars of x4 function keys outside |
|
Key lifespan |
≧3,000,000 times |
|
Key activation force |
2～4 N |
|
Key trip: |
≧0.45mm |
|
Encryption process |
PIN encryption, MAC algorithm, data encryption and data decryption, remote key download |
|
Sensitive data can be securely kept for more than five years with power off. |
Environment Adaptability
|
Protection level |
IP65(key surface) |
|
Operating temperature |
-20℃～+60℃ |
|
relative humidity |
30%～90% RH |
|
Operation temperature can withstand lower temperature with heating film option |
|
|
Storage temperature |
-30℃～+65℃ relative humidity:20%～90% RH |
|
Atmospheric pressure |
60～106Kpa |
Order information
|
Place of Origin: |
Shenzhen,China |
|
Brand Name: |
SZZT(Shenzhen Zhengtong) |
|
Model Number: |
ZT595- UPT |
|
Dimensions: |
Weight≈ 1.2kg H/W-Cxx F/W-Cyy |
|
Certification: |
PCI Certificate |
|
Minimum Order Quantity: |
1 |
|
Delivery Time: |
4-6 weeks |
|
Payment Terms: |
T/T |
