Certification:PCI 1.0 approved/ PCI 2.x / PCI 3.x certification

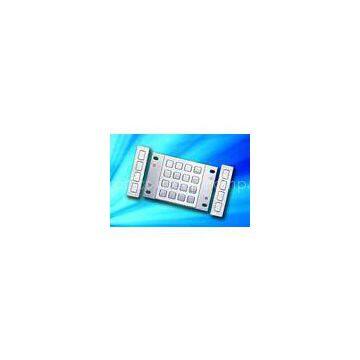

Customized RS-232 stainless steel USB 2.0 PCI EPP Support DES
Features
■ PCI PED Certification
■ Asian Style’s design, high quality stainless steel and polymer keypad
■ Customized layouts
■ Water-proof, dust-free, vandalism-proof, prevent from tamper drilling, penetration, dismantling, audio monitoring and replacement
■ Encrypted keys and other sensitive data are self destruction when tamper attack.
■ Support DES, Triple DES algorithm and 2048 bit RSA algorithm
■ RS-232 interface and USB 2.0 interface
■ Support RKL (remote key loading) in CA or digital signature
■ Connectors for function keys and beeper
■ Heating film for low temperature environment is available in option
Applications
■ Financial equipments: ATM, ADM, CDM, self-service Payment Terminal
■ Public equipments: ticket vending machine, automatic vending machine, self-service petrol Terminal
Performance Standards
■ ISO13491,ISO9564,IBM3624,ANSI X9.8,ANSI X9.9,ANSI X9.19
Approvals
■ ZT598: the certification of China Unionpay
■ ZT598L, ZT598H, ZT598J, ZT598K: PCI 1.x Certification
■ ZT598Mxx: PCI 2.x Certification
Capabilities
|
Input keypad |
10 numeric keys, 6 function keys |
|
External keypad |
with connector for 2 bars of x4 function keys outside |
|
Key lifespan |
≧3,000,000 times |
|
Key activation force |
2～4 N |
|
Key trip: |
≧0.45mm |
|
Encryption process |
PIN encryption, MAC algorithm, data encryption and data decryption, remote key download |
|
Sensitive data can be securely kept for more than five years with power off. |
Environment Adaptability
|
Protection level |
IP65(key surface) |
|
Operating temperature |
-10℃～+60℃ |
|
relative humidity |
20%～90% RH |
|
Operation temperature can withstand lower temperature with heating film option |
|
|
Storage temperature |
-40℃～+70℃ relative humidity:20%～95% RH |
|
Atmospheric pressure |
60～106Kpa |
Order information
|
Place of Origin: |
Shenzhen,China |
|
Brand Name: |
SZZT(Shenzhen Zhengtong) |
|
Model Number: |
ZT598L/ ZT598Mxx/ ZT598B ZT598C- Stainless Encrypting PIN Pad |
|
Dimensions: |
Weight≈0.65kg H/W=Exx F/W=F1x ZT598L- PCI 1.0 approved |
|
Dimensions: |
Weight≈0.8kg H/W=Lxx F/W=Dxx ZT598Mxx- PCI 2.0 approved |
|
Dimensions: |
Weight≈0.65kg H/W=Bxx F/W= Axx/Bxx/Cxx ZT598B |
|
Dimensions: |
Weight≈0.7kg H/W=Cxx F/W= Axx/Bxx/Cxx ZT598C |
|
Certification: |
PCI 1.0 approved/ PCI 2.x / PCI 3.x certification |
|
Minimum Order Quantity: |
1 |
|
Delivery Time: |
|
