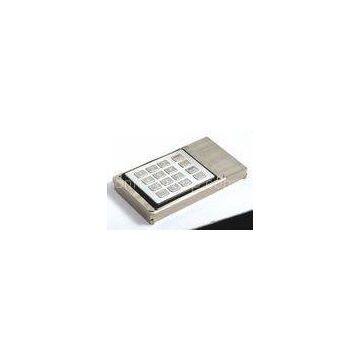

Water-proof RS-232 and USB 2.0 PCI EPP ZT598L For ATM, ADM, CDM

Water-proof RS-232 and USB 2.0 PCI EPP ZT598L For ATM, ADM, CDM thumbnail-1
Water-proof RS-232 and USB 2.0 PCI EPP ZT598L For ATM, ADM, CDM photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
SZZT (Shenzhen Zhengtong)
Place of Origin:
China
Model Number:
ZT598L/ ZT598Mxx/ ZT598B ZT598C- Stainless Encrypting PIN Pad
Contact Supplier Request Quote Chat Now
SZZT Electronics Group Company
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SZZT (Shenzhen Zhengtong)
Place of Origin China
Model Number ZT598L/ ZT598Mxx/ ZT598B ZT598C- Stainless Encrypting PIN Pad
Delivery Time:3-4 weeks
Certification:PCI 1.0 approved/ PCI 2.x / PCI 3.x certification

Water-proof RS-232 and USB 2.0 PCI EPP ZT598L For ATM, ADM, CDM

Features

■  PCI PED Certification

■  Asian Style’s design, high quality stainless steel and polymer keypad

■  Customized layouts

■ Water-proof, dust-free, vandalism-proof, prevent from tamper drilling, penetration, dismantling, audio monitoring and replacement

■  Encrypted keys and other sensitive data are self destruction when tamper attack.

■  Support DES, Triple DES algorithm and 2048 bit RSA algorithm

■  RS-232 interface and USB 2.0 interface

■  Support RKL (remote key loading) in CA or digital signature

■  Connectors for function keys and beeper

■  Heating film for low temperature environment is available in option

Applications

■  Financial equipments: ATM, ADM, CDM, self-service Payment Terminal

■  Public equipments: ticket vending machine, automatic vending machine, self-service petrol Terminal

Performance Standards

■  ISO13491,ISO9564,IBM3624,ANSI X9.8,ANSI X9.9,ANSI X9.19

Approvals

■  ZT598: the certification of China Unionpay

■  ZT598L, ZT598H, ZT598J, ZT598K: PCI 1.x Certification

■  ZT598Mxx: PCI 2.x Certification

Capabilities

Input keypad

10 numeric keys, 6 function keys

External keypad

with connector for 2 bars of x4 function keys outside

Key lifespan

≧3,000,000 times

Key activation force

2～4 N

Key trip:

≧0.45mm

Encryption process

PIN encryption, MAC algorithm, data encryption

and data decryption, remote key download

Sensitive data can be securely kept

for more than five years with power off.

Environment Adaptability

Protection level

IP65(key surface)

Operating temperature

-10℃～+60℃

relative humidity

20%～90% RH

Operation temperature can withstand

lower temperature with heating film option

Storage temperature

-40℃～+70℃

relative humidity:20%～95% RH

Atmospheric pressure

60～106Kpa

Order information

Place of Origin:

Shenzhen,China

Brand Name:

 SZZT(Shenzhen Zhengtong)

Model Number:

ZT598L/ ZT598Mxx/ ZT598B ZT598C- Stainless Encrypting PIN Pad

Dimensions:

Weight≈0.65kg

H/W=Exx

F/W=F1x

ZT598L- PCI 1.0 approved

Dimensions:

Weight≈0.8kg

H/W=Lxx

F/W=Dxx

ZT598Mxx- PCI 2.0 approved

Dimensions:

Weight≈0.65kg

H/W=Bxx

F/W= Axx/Bxx/Cxx

ZT598B

Dimensions:

Weight≈0.7kg

H/W=Cxx

F/W= Axx/Bxx/Cxx

ZT598C

Certification:

PCI 1.0 approved/ PCI 2.x / PCI 3.x certification

Minimum Order Quantity:

1

Delivery Time:
