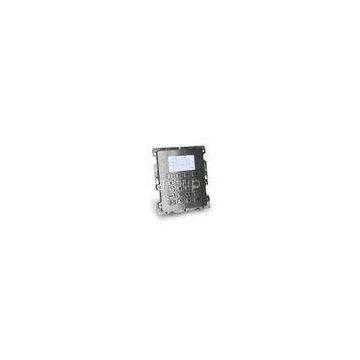

ZT595 Unattended Payment Terminal - PCI EPP with 64 MB Flash for ATM , Self-Service Payment Terminal
Features
■ High quality stainless steel and polymer keypad
■ High performance ARM9 processor, 64 MB RAM expandable, 64 MB Flash,
expendable
■ PCI PED approved
■ Linux operating system installed
■ Customized layouts
■ Water-proof, dust-free, vandalism-proof, prevent from tamper drilling, penetration, dismantling, audio monitoring and replacement
■ Encrypted keys and other sensitive data are self destruction when tamper attack.
■ Support DES, Triple DES algorithm and 2048 bit RSA algorithm
■ Support external card reader for Magnetic card payment, IC card payment, and cash payment with EMV L1/ L2 compatible.
■ Provide Ethernet interface, USB, RS-232interface and some industrial interfaces such as GPIO and RS485
■ Build-in SAM support
■ Connectors for function keys and beeper
■ Optional GSM/ GPRS/ CDMA/ Modem
Applications
■ Financial equipments: ATM, ADM, CDM,self-service Payment Terminal
■ Public equipments: ticket vending machine, automatic vending machine, self-service petrol Terminal
Performance Standards:
■ ISO13491, ISO9564, IBM3624, ANSI X9.8, ANSI X9.9, ANSI X9.19
Approvals
■ PCI Certification
■ EMV L1/ L2
Capabilities
■ Input keypad: 10 numeric keys, 6 function keys (Customized)
■ Key lifespan: ≧2,000,000 times
■ Encryption process: PIN encryption, MAC algorithm, data encryption and decryption, remote key download
■ Sensitive data can be securely kept for more than five years with power off.
Environment Adaptability
■ Protection level: IP65(key surface)
■ Operating temperature: -20°C ～ +60°C relative humidity: 30%～90% RH
Optional heating film for lower temperature
■ Storage temperature: -30℃～+65℃ relative humidity: 20%～90% RH
■ Atmospheric pressure: 60～106Kpa
Weight≈ 1.2kg
H/W-Cxx
F/W-Cyy
