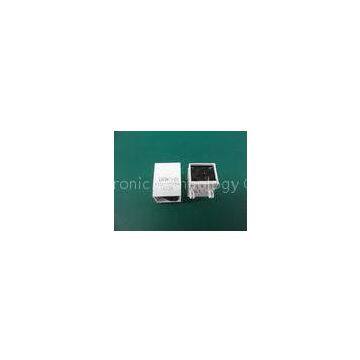

Internet Camera Magnetic 8 Pin RJ45 Connector White ROHS Approved 20.6mm
1.Type: 8 pin rj45 connector
2.TAB direction: Down
3.Port:Single
4.Shieded:NO
5.LEDS:NO
6.Length: 20.6mm
Applications:
PC Boards,10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver, IP phone, internet set-top box,internet camera,net bridge,computer,
telecommunication,MODEM,HomePNA, DSL／ADSL and so on
Descriptions:
＊ 10/100Base-Tx RJ45 single port 1X1 Right Angle w/o shielded with side entry
＊ Single port 1X1 Tab-Down RJ45 with internal magnetics
＊ Internal magnetics are 100% electrically tested for HI-POT and functionality
＊ Suitable for CAT5&6 fast Ethernet Cable or better UTP
＊ 350uHminimum OCL with 8mA bias current
＊ High performance for maximum EMI suppression
＊ Minimum 1500Vrms isolation per IEEE 802.3 requirement
＊ ROHS-6 peak wave solder temperature rating 260℃
＊ Operating temperarure range :0℃ to +70℃
＊ Storage temperature range :-40℃ to +85℃
＊ Number of positions:8
＊ Number of contacts loaded:8
＊ Shield:NO
＊ Rohs compliant(GP)
＊ Length:20.6mm(0.81inch)
＊ LEDS:NO
＊ Usage:KRJ-015PNL
2.ELECTRICAL SPECIFICATIONS @25℃ |
2.1 OCL :P(1-2)=P(3-6)=350 uH Min. @ 100 KHz, 100mV,with 8 mA DC Bias . |
2.2 L.L:P(1-2)=P(3-6)= 0.5uH Max. @ 100 KHz, 100mV |
2.3 Cw/w: 35PF Max. @ 100 KHz, 100mV |
2.4 Turn Ratio : P(1-2):J(1-2)=1CT:1CT±3% |
P(3-6):J(3-6)=1CT:1CT±3% |
2.5 DCR : 1.2Ω MAX. |
J(1-3):J(2-6)=J(4-7)=J(8-6)=150Ω |
2.6 Polarity: P1&J1;P3&J3 In-Phase. |
2.7 Insertion Loss :-1.1dB Max @0.3~100MHz |
2.8 Return Loss : -16 dB MIN @1-30 MHz |
-14.4 dB MIN @40MHz |
-13.1 dB MIN @50MHz |
-12 dB MIN @60-80MHz |
2.9 Cross Talk : -35 dB MIN. @1~100 MHz |
2.10 DCMR : -25 dB MIN. @1~100 MHz |
2.11Isolation HI-POT: P(1-2-3-4-5-6-7-8) TO J(1-2-3-6-4-5-7-8)@1500Vrms/ |
1mA Max/ 2SEC. |
Material specifications:
＊ Plastic core:Glass fiber filler PBT White(UL94V-0)
＊ Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
＊ PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
＊ Housing:Phenolic, PBT White(UL94V-0)
