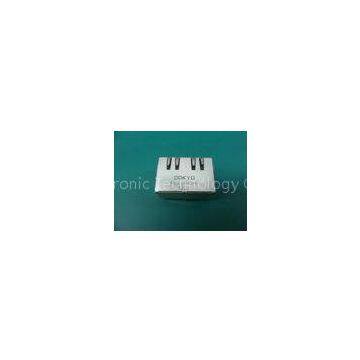

10 / 100Base 8 Pin Rj45 Connector , 2 port 1X2 CAT5 Vertical RJ45 Jack
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
4 Port 1X4 Tab-Down 8 Pin Magnetic Rj45 Jack Ethernet With Transformer
-
Single Port 1X1 Vertical 8 Pin Rj45 Connector With Magnetics KRJ-H56NL
-
Side Entry Tx 8 Pin Rj45 Connector Single Port With Internal Magnetics
-
Single Port 1X1 SMT 8 Pin Rj45 Connector Tab-Down With Transformer
-
Single Port 1x1 10p8c 10 Pin Rj45 Connector Vertical With Ethernet
-
1 X 2 Ethernet IEEE 10P8C 10 Pin RJ45 Connector 10 / 100 / 1000Base for CAT5 CAT6
Product Details
| Brand Name | DGKYD | Place of Origin | China | |
| Model Number | KRJ-201DNL |
Product Description
Certification:GP ROHS SGS ISO9001
1.Type: 8 pin rj45 connector
2.TAB direction: Down
3.Port:Double
4.Shieded:YES
5.LEDS:YES
6.EMI finger:YES
7.Length: 21.5mm
10/100Base 8 Pin Rj45 Connector , 2 port 1X2 CAT5 Vertical RJ45 Jack
Descriptions:
＊ 10/100Base-Tx RJ45 double port 1X2 Vertical with LEDS with side entry
＊ Double port 1X2 Tab-Down RJ45 with internal magnetics
＊ Internal magnetics are 100% electrically tested for HI-POT and functionality
＊ Suitable for CAT5&6 fast Ethernet Cable or better UTP
＊ 350uHminimum OCL with 8mA bias current
＊ High performance for maximum EMI suppression
＊ Minimum 1500Vrms isolation per IEEE 802.3 requirement
＊ ROHS-6 peak wave solder temperature rating 260℃
＊ Operating temperarure range :0℃ to +70℃
＊ Storage temperature range :-40℃ to +85℃
＊ Number of positions:8
＊ Number of contacts loaded:8
＊ Shieded:YES
＊ Rohs compliant
＊ Length:21.5mm
＊ LEDS:YES
＊ EMI:YES
＊ LEFT:Green,RIGHT:Yellow
＊ Usage:KRJ-201DNL
Electrical Specifications:
|
Insertion Loss dB max |
Return Loss dB min | Cross Talk(dB TYP) |
Common Mode Rejection (dB TYP) |
Hipot (vrms) |
OCL (uH MIN) |
TR | ||||
| 1-100MHZ | 1-30MHZ | 30-60MHZ | 60-80MHZ | 1-30MHZ | 30-60MHZ | 60-80MHZ | 1-100MHZ | 1500 | 350 | TX:RX |
| -1 | -16 | -14 | -10 | -40 | -35 | -30 | -35 | 1:1 |
Material specifications:
＊ Plastic core:Glass fiber filler PBT Black(UL94V-0)
＊ Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
＊ PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
＊ Housing:Phenolic, PBT Black (UL94V-0)
＊ Metal shell:Copper Alloy ,Tin and Nickel plated
