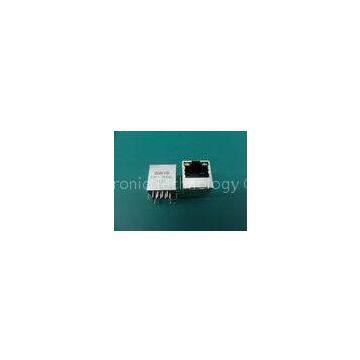

Single Port Shielded 8 Pin Rj45 Connector , Tab-Up 180 Degree Top Entry Rj45

1.Type: 8 pin rj45 connector

2.TAB direction: Up

3.Port:Single

4.Shieded:YES

5.LEDS:YES

6.EMI finger:NO

7.Length: 18.75mm

Descriptions:

＊ 10/100Base-Tx RJ45 single port 1X1 Vertical with LEDS with top entry

＊ Single port 1X1 Tab-Up 180 degree RJ45 with internal magnetics

＊ Internal magnetics are 100% electrically tested for HI-POT and functionality

＊ 350uHminimum OCL with 8mA bias current

＊ High performance for maximum EMI suppression

＊ Minimum 1500Vrms isolation per IEEE 802.3 requirement

＊  ROHS-6 peak wave solder temperature rating 260℃

＊ Operating temperarure range :0℃ to +70℃

＊ Storage temperature range :-40℃ to +85℃

＊ Number of positions:8

＊ Number of contacts loaded:8

＊ Shieded:YES

＊ Rohs compliant

＊ Length:18.75mm

＊ LEDS:YES

＊ EMI finger:NO

＊ LEFT:Yellow,RIGHT:Green

＊ Usage:HY951180A/KRJ-181NL
