W / O 100Base Lan 8 Pin RJ45 Connector Right Angle With LEDS Transformer

FOB Price

Negotiable / Box

1 Box(Min.Order)

Supply Ability 0 Box / Boxes per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	DGKYD		Place of Origin	China
Model Number	KRJ-015NL

Product Description

Delivery Time:Lead-time 7days
Certification:GP ROHS SGS ISO9001

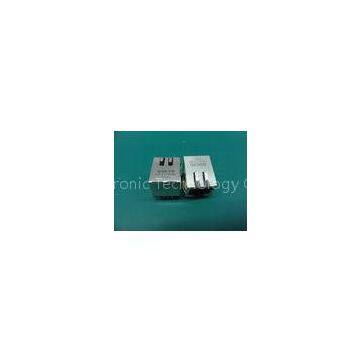

W / O 100Base Lan 8 Pin RJ45 Connector Right Angle With LEDS Transformer

1.Type: 8 pin rj45 connector
2.TAB direction: Down
3.Port:Single
4.Shieded:YES
5.LEDS:NO
6.EMI finger:YES
7.Length: 21.3mm

Descriptions:

＊ 10/100Base-Tx RJ45 single port 1X1 Right Angle w/o LED with side entry
＊ Single port 1X1 Tab-Down RJ45 with internal magnetics
＊ Internal magnetics are 100% electrically tested for HI-POT and functionality
＊ Suitable for CAT5&6 fast Ethernet Cable or better UTP
＊ 350uHminimum OCL with 8mA bias current
＊ High performance for maximum EMI suppression
＊ Minimum 1500Vrms isolation per IEEE 802.3 requirement
＊ ROHS-6 peak wave solder temperature rating 260℃
＊ Operating temperarure range :0℃ to +70℃
＊ Storage temperature range :-40℃ to +85℃
＊ Number of positions:8
＊ Number of contacts loaded:8
＊ Shield:YES
＊ Rohs compliant
＊ Length:21.3mm(0.85inch)
＊ LEDS:NO
＊ EMI fingers:YES
＊ Usage:J0011D21NL/KRJ-015NL

2.ELECTRICAL SPECIFICATIONS @25℃

2.1 OCL :P(1-2)=P(3-6)=350 uH Min. @ 100 KHz, 100mV,with 8 mA DC Bias .

2.2 L.L:P(1-2)=P(3-6)= 0.5uH Max. @ 100 KHz, 100mV

2.3 Cw/w: 35PF Max. @ 100 KHz, 100mV

2.4 Turn Ratio : P(1-2):J(1-2)=1CT:1CT±3%

P(3-6):J(3-6)=1CT:1CT±3%

2.5 DCR : 1.2Ω MAX.

J(1-3):J(2-6)=J(4-7)=J(8-6)=150Ω

2.6 Polarity: P1&J1;P3&J3 In-Phase.

2.7 Insertion Loss :-1.1dB Max @0.3~100MHz

2.8 Return Loss : -16 dB MIN @1-30 MHz

-14.4 dB MIN @40MHz

-13.1 dB MIN @50MHz

-12 dB MIN @60-80MHz

2.9 Cross Talk : -35 dB MIN. @1~100 MHz

2.10 DCMR : -25 dB MIN. @1~100 MHz

2.11Isolation HI-POT: P(1-2-3-4-5-6-7-8) TO J(1-2-3-6-4-5-7-8)@1500Vrms/

1mA Max/ 2SEC.

Material specifications:

＊ Plastic core:Glass fiber filler PBT Black(UL94V-0)
＊ Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
＊ PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
＊ Housing:Phenolic, PBT Black (UL94V-0)
＊ Metal shell:Copper Alloy ,Tin and Nickel plated
