Wireless remote 12000 LB offroad 4x4 Recovery Winch / Winches

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China
Model Number	SIC12000W

Product Description

Delivery Time:20 days
Certification:CE, ISO9001:2008

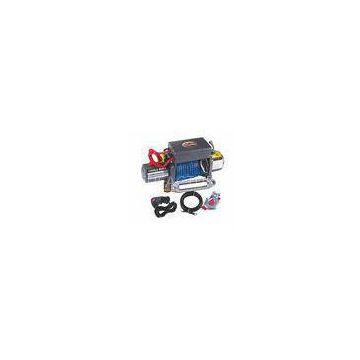

Wireless remote 12000 LB offroad 4x4 Recovery Winch / Winches

CE winch, fast line speed waterproofed motor and gearbox integrated control box Fairlead hook switch remote and wireless remote

CE approved Truck winch 12000lb (SIC12000W) fast line speed, with rope

Specifications:

Rated line pull: 12000LB (5443kg) single line Motor: 6.6hp/4.8kw 12V, 4.0hp/3.0kw 24V, Series Wound Control: Remote switch, 12ft(3.7m)lead Gear train: 3 Stage Planetary Gear reduction ratio: 187.2:1 Braking Action: Automatic In-The-Drum Synthetic Rope: Φ10.0mmx28m Main body: sealed Effected protection: 5600kg-5750kg Fairlead: 4-Way Roller Fairlead Remote Control: Included Battery: Recommended:650CCA minimum for winching Battery Leads: 2 gauge, 72\" (183mm) Finish: Dark gray powder coat Overall Dimension: 21.1\"x6.3\"x8.6\" (537mmx160mmx218mm) Mounting Bolt Pattern: 254mmx114.3mm

12000lb Line speed and AMP Draw 12V

Line Pull	lb	0	4000	6000	8000	10000	12000	12300
	kg	0	1810	2720	3630	4540	5440	5590
Line Speed	ft/min	33.3	16.8	12.8	10.1	8.8	7.6	0
	m/min	10.3	5.1	3.9	3.1	2.7	2.3	0

12000lb Line Pull and Cable Capacity

Layers of cable		1	2	3	4
Rated Line Pull per layer	lb	12000	9210	8030	6894
kg	5443	4170	3640	3125
cumulative cable capacity	ft	17	41	71	82
	m	4.8	12	21	25

PACKAGE:

N.W. 30kgs G.W. 32Kgs Box cbm: 57x19x34.5cm 1PC/CTN
