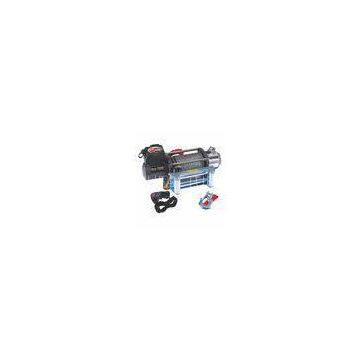

13000 lb 12v, 24v waterproofed motor Heavy Duty, Truck Electric Winch
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Wireless remote control 15000 lb Truck Electric Winch / Winches
-
Water proof 16800 lb power motor Truck Electric Winch (12V / 24V)
-
4 - Way Roller Fairlead Heavy Duty, Truck Electric Winch / Winches
-
5000 LB electric 4x4 Recovery Winch / Off Road Winches
-
6000 LB 12V Off Road, 4x4 Recovery Winch / Auto Winches
-
12V 8000 LB Offroad Car / 4x4 Recovery Winch / Winches with fairlead
Product Details
| Place of Origin | China | |
| Model Number | SEC13000 |
Product Description
Certification:CE, ISO9001:2008
13000 lb 12v, 24v waterproofed motor Heavy Duty, Truck Electric Winch
wired and wireless remote control Switch remote Fairlead Hook overload protection function integrated solenoid box, waterproofed motor and gear boxFeaures :
Heavy Duty Electric Winch 13000lb waterproofed motor, air cooled, steel gears, waterproofed gearbox, waterproofed solenoid. wired and wireless remote controlSpecification:
Rated line pull:13000LBS(5897kgs) single line Motor: 5.5hp/4.0kw 12V, 6.44hp/4.8kw 24V, Series Wound Control: Remote switch, 12ft(3.7m)lead Gear train: 3 Stage Planetary Gear reduction ratio: 218.4:1 Clutch: flexible operation, water-resistant Braking Action: Automatic In-The-Drum Drum Size:Φ64mmxL223mm Cable: Φ11.0mm x 28m Fairlead: 4-Way Roller Fairlead Remote Control: Included Battery: Recommended:650CCA minimum for winching Battery Leads: 2 gauge, 72\"(183mm) Finish: Dark gray powder coat Overall Dimension: 21.3\"x6.3\"x8.6 (540mmx160mmx218mm) Mounting Bolt Pattern: 254mmx114.3mm
LINE SPEED AND AMP DRAW(FIRST LAYER)12V
| Line Pull | lb | 0 | 2000 | 4000 | 6000 | 8000 | 10000 | 13000 |
| kg | 0 | 907 | 1814 | 2721 | 3628 | 4536 | 5897 | |
| Line Speed | ft/min | 22.5 | 12.4 | 9.8 | 8.5 | 7.5 | 6.56 | 4.8 |
| m/min | 6.85 | 3.8 | 3.0 | 2.6 | 2.3 | 2 | 1.48 |
LINE PUlL AND CABLE CAPACITY
| Layers of cable | 1 | 2 | 3 | 4 | |
|
Rated Line Pull per layer |
lb | 13000 | 10010 | 8840 | 4710 |
| kg | 5897 | 4541 | 4010 | 3361 | |
|
cumulative cable capacity |
ft | 15 | 34.6 | 58.6 | 85.3 |
| m | 4.58 | 10.54 | 17.87 | 26 |
PACKAGE
Weight: N.W. 36kgs G.W. 38Kgs
box size: 57x19x34.5cm 1PC/CTN
