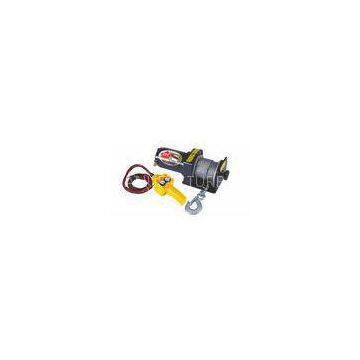

12V, 24V DC Handy 2000 lb power ATV Electric Winch / Winches

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China
Model Number	P2000-1

Product Description

Delivery Time:20 days
Certification:CE, ISO9001:2008

12V, 24V DC Handy 2000 lb power ATV Electric Winch / Winches

Mounting plate 4-way roller fairlead optional both power in and power out funcion easy to operate handy.

Specifications:

Rated line pull	2000 lbs (907 kgs) single line
Motor	Permanent magnet, 0.7kw/0.9hp 12v;0.8kw/1.0hp(24v)
Gear reduction ratio	153:1
Cable (Dia x L)	Φ5/32\"49\'(Φ4mm15m)
Drum size (Dia x L)	Φ1.24\"2.88\"(Φ31.5mm73mm)
Overall dimensions(L X W X H)	11.2\"4.1\"4.1\"(285mm105mm105mm)
Mounting bolt pattern	3.13\"(79.5mm)
Packing size	342434cm 2PCS/CTN
Weight	N.W/G.W: 14kg/15kg

Pull, speed, Amperes, Volts(First Layer)

Line pull lbs(kgs)	Line Speed ft/min(m/min)	Current A
	12V DC 24V DC	12V DC 24V DC
0	10.5(3.2) 11.8(3.6)	12 6
500(227)	9.2(2.8) 10.2(3.1)	25 10
1000(454)	7.5(2.3) 8.5(2.6)	40 15
1500(680)	5.9(1.8) 6.9(2.1)	60 25
2000(907)	3.3(1.0) 3.6(1.1)	90 55

Line pull and Rope capacity In Layer

Layer	Rated Line Pull lbs(kgs)	Total Rope on Drum ft(mm)
1	2000(907)	6.5(2.0)
2	1630(739)	14.0(4.3)
3	1380(626)	22.0(6.8)
4	1190(540)	31.0(9.5)

Notice:

Do not use the winch as a hoist Do not operate and spool under full load over one minute continuously When motor is overheating, please stop for a while to cool down to ensure a longer life of the winch.

About us:

We are a professional winch manufacturer in Ningbo, China. Specializing in off-road electric winches, atv winches, boat winches, hand winches and off-road accessories. Our company is ISO9001 quality management system certificated, and passed tests from SGS and Intertek. We have CE approval for all winches and have exported to many countries in Europe, and America, Oceania, etc. With decades of winch experience, we have got more than ten patents and applied five more for advanced winch technology.
