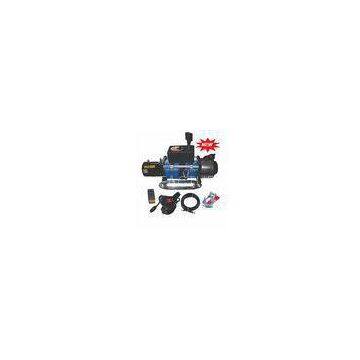

Heavy Duty 9500 LB Remote Switch OffRoad 4x4 Recovery Winch / Winches

Heavy Duty 9500 LB Remote Switch OffRoad 4x4 Recovery Winch / Winches thumbnail-1
Heavy Duty 9500 LB Remote Switch OffRoad 4x4 Recovery Winch / Winches photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Place of Origin:
China
Model Number:
SC9500TW
Contact Supplier Request Quote Chat Now
Lift Winch Manufacture Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number SC9500TW
Delivery Time:20 days
Certification:CE, ISO

Heavy duty 9500 LB Remote switch OffRoad 4x4 Recovery Winch / Winches

9500LB 4x4 Recovery Winch For Off Road, Truck, heavy Duty, etc Remote switch / 12ft(3.7m)lead Aluminium Fairlead Specifictions:

Rated Line Pull

9500LB (4300kgs) single line

Motor

5.5hp/4.0kw(12V) Series Wound

Control

Remote switch, 12ft(3.7m)lead

Gear train

3 Stage Planetary

Gear train ratio

195.4:1

Clutch

Key Cam

Braking Action

Two-way, Automatic In-The-Drum

Drum Size

Φ2.5\"*8.8\"(Φ63.5mm*224mm)

Rope

Φ8.5m*28m

Fairlead

Aluminium Fairlead

Wireless Remote Control

included

Battery

Recommended:650CCA minimum for winching

Battery Leads

2 gauge, 72\"(183mm)

Finish

Black powder coat

Overall Dimensions

21.1\"×6.3\"×8.6\"(537mm×160mm×218mm)

Mounting Bolt Pattern

254mm×114.3mm

Weight

N.W.81lb(27kg)    G.W.84lb(28kg)

Packing Size

57×19×34.5cm    1PC/CTN



9500LB LINE SPEED AND AMP DRAW (FIRST LAYER) 12V

Line Pull

lbs

No LOAD

2000

4000

6000

9500

kg

907

1814

2721

4300

Line Speed

ft/min

16.5

13.86

11.55

8.9

6.43

m/min

5

4.2

3.5

2.7

1.95

Motor

Amps

73

120

165

260

410



9500LB LINE PULL AND CABLE CAPACITY

Layers of cable

1

2

3

4

Rated line pull per layer
