Certification:CE,ROHS,CEC,ETL

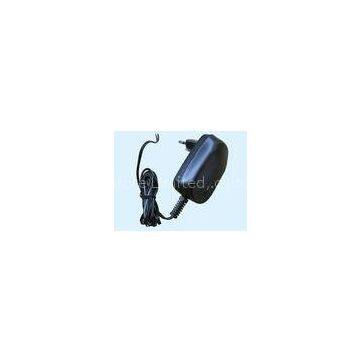

Wall Mount Industrial Battery Charger For Lead Acid Battery ,12V 1A
Feature:
Universal AC input
2 pole US/ European type plug
Class II power (without earth pin)
No load consumption < 0.3W
Protections: Overload, Short Circuit
Approved by ETL/CE/CEC
2 year warranty
Description:
12V1A Two Color Battery charger charging for lead acid battery compliance Rohs and REACH
|
Electronics Specification: |
|
|
Input Voltage Range : |
90 – 264Vac |
|
Input Frequency : |
50/60Hz |
|
AC Input Current : |
0.3A at Full Load and any Input Voltage |
|
Normal Output Voltage : |
12.0Vdc |
|
Maximum Output Current : |
1.0±0.1A |
|
Float Output Voltage: |
14.4 ± 0.4Vdc (Green LED ON) |
|
Bulk Charge Mode Voltage: |
13.80 ± 0.4Vdc (Red LED ON) |
|
Wet battery mode Voltage: |
13.40~14.70Vdc |
|
Maximum Output wattage: |
15.00W(At 1A load and any line) |
|
Line Regulation : |
±1% Maximum |
|
Load Regulation : |
±5% Maximum |
|
Efficiency : |
＞80% |
|
Output Short Circuit Protection : |
Can be Shorted without damage and auto recovery. |
|
Environment: |
|
|
Working Temp.: |
0~40℃ |
|
Working Humidity: |
20%~90% RH non-condensing |
|
Storage Temp. & Humidity: |
-20℃~85℃, 10%~95% RH |
|
Reliability |
|
|
Hi-Pot Testing Voltage : |
I/P to O/P : 3.0 (60Sec.) KVac |
|
Safety Standard : |
EN60335-2-29 |
|
EMI Standard : |
EN55022B |
|
Mechanical Characteristics: |
|
|
Case : |
Euro (CEE) Version |
|
Case Size : |
(L)75.7*(W)547.5*(H)31mm |
|
Input Connector : |
Euro Two Round Pins |
|
Output Cable : |
1.8M |
|
Output Connector : |
Red and Black clip, other type is available |
|
Safety Approval: |
|
|
Certificate: |
ETL, CE, CEC |
Led Instruction Manual
Charger Connect to 230Vac: LED Indication Green
Charger Connect to 230Vac and Connect to Battery when charging. The charging current over 0.25A: LED Indication Red
Battery when Fully Charging and charging current below 0.25A: LED Indication Green
Certificate:
Applications:
widely used in household appliances, IT digital products, medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.
Factory Show:
