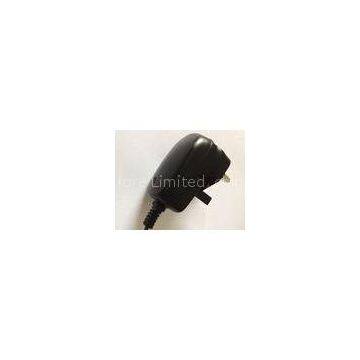

6v Kids Car Battery Charger , High Efficiency 8W Battery Charger For Electronic Toy Car

Electronics Specification :

Input Voltage Range :

90 – 264Vac

Input Frequency :

50/60Hz

AC Input Current :

0.2A at Full Load and any Input Voltage

Normal Output Voltage :

6.0Vdc

Maximum Output Current :

950mA~1100mA

Float Output Voltage:

6.8 ~ 7.3Vdc (Red LED ON)

Bulk Charge Mode Voltage:

3.0 ~ 6.8Vdc (NO LED ON)

Wet battery mode Voltage:

3.0~7.5Vdc

Maximum Output wattage:

8.00W(At 1.0A load and any line)

Line Regulation :

±1% Maximum

Load Regulation :

±5% Maximum

Efficiency :

＞70%

Output Short Circuit Protection :

Can be Shorted without damage and auto recovery.

Environment :

Working Temp.:

0~40℃

Working Humidity:

20%~90% RH non-condensing

Storage Temp. & Humidity:

-20℃~85℃, 10%~95% RH

Reliability :

Hi-Pot Testing Voltage :

I/P to O/P : 3.0 (60Sec.) KVac

Safety Standard :

EN60335-2-29

EMI Standard :

EN55022B

Mechanical Characteristics :

Case :

Euro (CEE) Version

Case Size :

(L)65*(W)40.3*(H)28.7mm

Input Connector :

Euro Two Round Pins

Output Cable :

1.8M

Output Connector :

Red and Black clip, other type is available

Safety Approval :

Certificate:

ETL, CE, CEC
