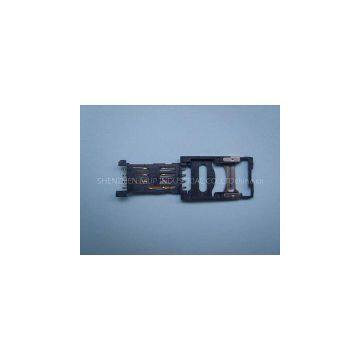

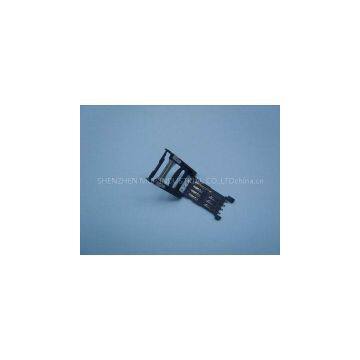

Help CenterSIM Card Connector
Related Products
1.SIM card holder
2.ROHS Compliant
3.used :GPS,card reader.Mobile.
4.life:5000 cycles min
5.good contact performance
Technical characteristics
1.General characteristics
Dimensions:29.90L*17.35W*2.50Hmm
Weight:1.0±0.2g
Contact principle:Friction technology
Operating position:shaft up/down/horizontal
Mounting system:SMT(without post)
Durability:5000 cycles min
2.Mechanical characteristics
Insulation material:Thermoplastic,UL 94V-0
3.Electrical characteristics
Number of contacts:6pins
Contact resistance:50MΩ typical,1000 MΩ max
Insulation resistance:>1000 MΩ/500V DC
Switch type:Blade
Operation:Normally open
4.Solderability
Wave:not applicable
Vaporphase:215oC,30sec Max
IR reflow:230oC,15sec Max
Manual soldering:360oC,3sec.Max
5.Environmental characteristics
Operating temperature: -40oC≈+85oC
Operating humidity:10%≈95%RH
Storage temperature:-40oC≈+85oC
Storage humidity:10%≈95%RH
Thermal shock: -40oC≈+85oC,5cycles
Damp Heat:40oC,90%RH,10days
Salt-mist:35oC,5%Nacl,24H
