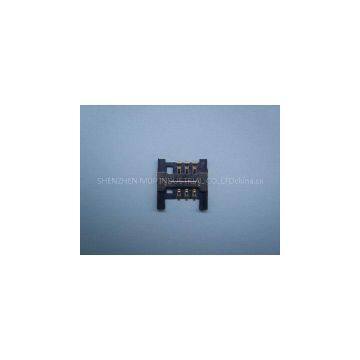

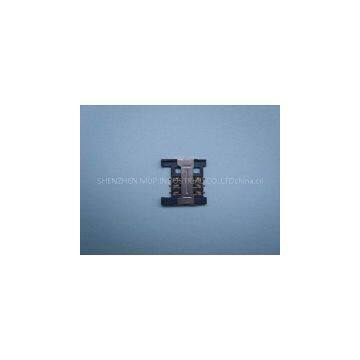

1.USIM card reader
2.ROHS compliant
3.used:mobile phone,card holder,GPS.
4.long life:above 1500 cycles.
5.stable structu
Technical characteristics
1.General characteristics
Dimensions:16.40L*16.30W*1.80/2.0H mm
Weight:0.50g
Contact principle:Friction technology
Operating position:shaft up/down/horizontal
Mounting system:SMT(post optional)
Durability:1500 cycles min
2.Mechanical characteristics
Insulation material:Thermoplastic,UL 94V-0
3.Electrical characteristics
Number of contacts(optional):6pins
Contact resistance:50MΩ typical,1000 MΩ max
Insulation resistance:>1000 MΩ/500V DC
4.Solderability
Wave:not applicable
Vaporphase:215oC,30sec Max
IR reflow:230oC,15sec Max
Manual soldering:not applicable
5.Environmental characteristics
Operating temperature:-25oC≈ +70oC
Operating humidity:10%≈+95%RH
temperature:-40oC≈+85oC
Storage humidity:10%≈+95%RH
Thermal shock: -40oC+85oC,5cycles
Damp Heat:40oC,90%RH,10days
Salt-mist:35oC,5%Nacl,24H
