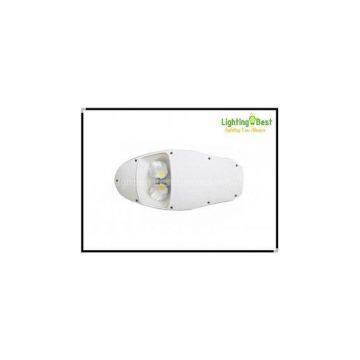

Single Chip 100v, 110v, 240v AC 50hz - 60hz Cobra Head Led Street Light, gas station Lamp

Input Voltage

AC85V-265V

Frequency Range

50Hz--60Hz

Harmonic Distortion

≤15%

power Factor

＞0.95

Power Efficiency

＞87%

Working Voltage

DC30-36V

led quantity

1pc

Led Power

120W / 140W

Lamp Total Power

133W / 158W

LED Chip

   Epistar    or    Bridgelux

 LED luminous efficiency

90±5lm/w    or    100±5lm/w

 lamp\'s Efficiency

＞80%

 Average Illuminance Intensity(60W)

Height  8M

31.5 lux

Height  10M

28.1 lux

Height  12M

25.2 lux

Illuminance  Uniformity

＞0.5

Correlated Color Temperature

WW

2700k--3200k

PW

3900k--5000k

CW

5800k--6200k

Color Rendering Index

WW

Ra＞68

PW/CW

Ra＞75

Light Distribution

Symmetric /Circular light spot

Light Design

LED + Reflector

Working Temperature

﹣40° ~ +45° C

 Storage Temperature

﹣40° ~ +65° C

IP Grade

IP65

Working lifespan

50.000H

Power cable

0.75mm²  trifurcating cable

Connect wire

L  Power line

N  Null line

G  Earth line

Lamp Shell Color

White

Certificate

CE, ROHS,

Lamp weight : G.W./N.W.

13.5 kg/12.5 kg

lamp packing dimension

815x395x230

Structure dimension (mm)

Light distribution curve
