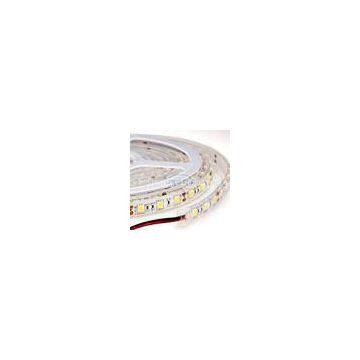

Waterproof Ip68 Flexible LED Strip Light, 10mm 5050 SMD LED Strip Lights 30 leds/m

Delivery Time:7-15days
Certification:ISO

Waterproof Ip68 Flexible LED Strip Light, 10mm 5050 SMD LED Strip Lights 30 leds/m

Description:

5050 SMD LED (Epistar chip) adopted Waterproof IP68, Drip Epoxy resin glue White, Warm white, Red, Yellow, Blue, Green, RGB color available Silicone tube encased and Epoxy glue injected waterproof IP68 High luminance efficient and low power consumption Easy Installation, 3M self adhesive tape in backside The flexible LED strip can be divided by every three leds Long Life over 50, 000 hours of usable life CE RoHS compliant With 2~3 Year Warranty

Specifications:

US-F5050-30I Series of Silicone tube encased and Epoxy glue injected waterproof IP68

Dimension: 5000*12*4mm
LED Chip:  5050 SMD TOP LED
LED Quantity: 30pcs/meter, total 150pcs
Material: FPC + Silicone tube encased and Epoxy glue injected
FPC color: Yellow, White, Black

Emitting color: Red, Yellow, Blue, Green, warm white, cool white, RGB colors

Working Voltage: DC12V / DC24V
Beam Angle: >120°
Rated Power: 7.2W/m

Life Span: ≥50000 hrs,
Working Temperature: -25℃~55℃
Working Humidity: 10%~95%
Protection Degree: IP68
Packaging: 5m/roll

Part No.	Color	Descrip.	Size(L*W)	Watt	Led Q’ty	Volt	Packing	IP
US-F5050R-60I	Red	5050LED	5000*12mm	14.4W/m	60led/m	12V	5m/roll	IP68
US-F5050Y-60I	Yellow
US-F5050B-60I	Blue
US-F5050G-60I	Green
US-F5050WW-60I	WW
US-F5050W-60I	White

5050 SMD LED Strip dimension (unit: mm)

Strip Connection:

To cut and seal at one end, please follow the steps: A1 A2 A3 B1 B2
To cut and install waterproof connector at one end, please follow the steps: A1 A2 A3 C1 C2 C3 C4 C5
A1: Cut the light strip at the mark ”scissors” or by every 3 LED\'s.
A2: Screw to open the glue cap.
A3: Use the thrust (another side of glue cap) to puncture the surface.
B1: Inject the silicon gel into the end cap without holes.
B2: Push the strip into the cap and let gel dry for 1 hour.
C1: Put the connector wire through the end cap holes.
C2: Solder the wire onto the PCB.
C3: After solder the two wires, push the strip into the end cap with wires carefully.
C4: Inject the silicon glue at the end of strip and cap.
C5: Make sure end cap and strip are connected well and let gel dry for 1 hour.

Accessories:

Connectors are necessary if you want to connect the cut sections together or connect a section to power. (Connector of strip to strip and connector of strip to power are both available)

Installation:

Waterproof flexible strips have the ability to produce continuous light connection for long distances while

maintaining uniformity. They can be interconnected using connectors or cut in marked areas for shorter installation.

Package:

250meters/50rolls packed in one carton
Carton size: 52 x 26 x 28 cm

Applications:
1) Architectural decorative lighting
2) Archway, canopy & bridge edge lighting
3) Amusement park, theater & aircraft cabin mood lighting
4) Emergency hallway lighting
5) Auditorium walkway lighting
6) Stairway accent lighting
7) Concealed lighting
8) Backlighting for signage letters
9) Channel letter lighting
10) Cove lighting
