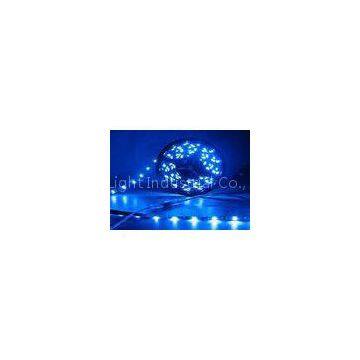

Battery Powered IP65 Flexible LED Strip Light For Led Walkway Lighting

Battery Powered IP65 Flexible LED Strip Light For Led Walkway Lighting

Quick Detail:

FPC color: Yellow, White, Black

LED Chip:  5050 SMD TOP LED

3528 SMD LED Strip dimension

Description:

Specifications:

US-F5050RGB-30N

Dimension: 5000*10*2mm
LED Chip:  5050 SMD TOP LED
LED Quantity: 30pcs/meter, total 150pcs
Material: FPC
FPC color: Yellow, White, Black

Emitting color: Red, Yellow, Blue, Green, warm white, cool white, RGB colors
Working Voltage: DC12V / DC24V
Rated Power: 7.2W/m

Life Span: ≥50000 hrs,

Beam Angle: >120°
Working Humidity: 10%~95%
Protection Degree: IP33

Working Temperature: -25℃~55℃
Packaging: 5m/roll

3528 SMD LED Strip dimension (unit: mm)

ACCESSORIES:

We provided T1 and T2 type 2pcs for single color series non-waterproof light strip each reel. (For free)
Wiring connector — wire length 20cm

Strip Connection:

Connectors are necessary if you want to connect the cut sections together or connect a section to power. (Connector of strip to strip and connector of strip to power are both available)

1. Cut along the mark line, tear a little bit 3M tape from the mark. If 3M tape is not peeled off a little, it will be not easy to insert the strip into the connector.
2. Pull the black plastic lock out from the connector, insert strip.
3. Make sure the soldering pads fully touch the conjunction metal.
4. Push the plastic lock back towards the middle in the lock position.
5. Do not use too much strength while pulling the plastic lock, otherwise it can destroy the connector.

Notes for flexible LED strip mounting:

1. Please make sure that the back-surface of SMD LED ribbons are clean and dry. Dirt, oil, silicon oil, etc.
2. Make sure that the adhesive backing is removed completely to guarantee perfect mounting.
3. After the SMD LED ribbon is well-positioned, press the strip with an appropriate force.

Installation:

Power supply:

Adequate and proper power supply should be applied to run 150pcs SMD LEDs/5m 5050 LED Light Strip
Power supply with voltage DC 12V should only be used.

Package:

250meters/50rolls packed in one carton
Carton size: 52 x 26 x 28 cm

Applications:

1) Architectural decorative lighting
2) Archway, canopy & bridge edge lighting
3) Amusement park, theater & aircraft cabin mood lighting
4) Emergency hallway lighting
5) Auditorium walkway lighting
6) Stairway accent lighting
7) Concealed lighting
8) Backlighting for signage letters
9) Channel letter lighting
10) Cove lighting
