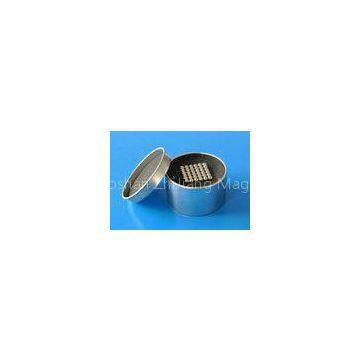

7.6 g/ cm3 Sintered Ndfeb Magnet , Neodymium Magnetic Ball

FOB Price

Negotiable / Ton

1 Ton(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

ZJMAG

Place of Origin

China

Product Description

Delivery Time:15-30 working days for prototype or batch accordingly
Certification:ISO 9001: 2008
7.6 g/ cm3 Sintered Ndfeb Magnet , Neodymium Magnetic Ball

Quick Detail:

1.Density – 7.4-7.6 g/ cm3

2.Manufacturing process –sintering (most common), injection molding, and compression bonding.

3.Various shapes - blocks, bars, discs, rings, arc, segments, sectors, fan shape, cylinders, etc.

4.Prone to oxidation, plating is recommended ( Ni-CU-Ni, Zn, Au, Epoxy, Black Nickel, etc)

5.Dimensions range from 4.8mm to 25mm

Physical Properties of NdFeB Magnet
Density(g/cm3)	7.3-7.5
Curie Temperature (℃)	320
Max. Operating Temperature (℃)	220
Relative Permeability	1.05
Flexural Strength (N/nm2)	250
Compressive Strength (N/nm2)	1100
Tensile Strength (N/nm2)	75
Hardness (Hv)	550-650
Temperature Coefficient of Br (%/℃)	-0.09~-0.12
Temperature Coefficient of Hcj (%/℃)	-0.50~-0.65

Applications:

Intelligent toys

Competitive Advantages

The most powerful commercially produced magnets Higher Maximum Energy Product ranging from 30MGOe to 52 MGOe Very high strength and relatively low cost Easier to machine compared to Alnico and SmCo Magnets

Merchandise name:

Neodymium Iron Boron Magnet, Neodymium Magnet, Neodymium Rare Earth Magnet, Rare Earth magnet, magnet, permanent magnet, NdFeb, sintered NdFeB, Bounded NdFeB magnet, Pot magnet,

powerful magnet, segment magnet, motor magnet, generator magnet, cylinder magnet, magnet material, magnetic product, permanent magnetic materials,N35,N38,N52, Magnetic material

We can provide magnets of any size and almost any grade according to the specifications you provide. If you are in need of customized magnets, please mail to sales@zhijiangmagnets.com or fax your drawing to 0086 571 82871538 for more information. We\'ll get back to you within 1 to 2 businss days.
