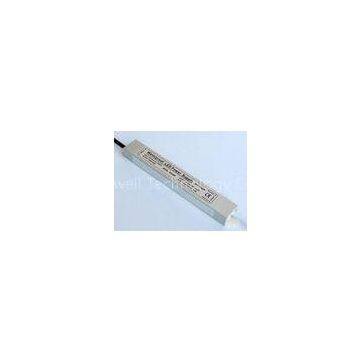

12V / 24V 25W Waterproof Led Driver IP67 240V AC CE ROHS Approval

Name: 12V / 24V 25W Waterproof Led Driver IP67 240V AC CE ROHS Approval
Brand: STARWELL
SKU: 148973640
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

STARWELL

Place of Origin:

China

Model Number:

WTF-D12025A

Shenzhen Starwell Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name STARWELL

Place of Origin China

Model Number WTF-D12025A

Delivery Time:10-15 days
Certification:UL,CE,ROHS, FCC,GS,SAA,C-TICK

12V / 24V 25W Waterproof Led Driver IP67 240V AC CE ROHS Approval

Short Features :

> Output type : constant voltage

> input voltage range : 90~240VAC

> output : 12V 2.08A / 24V 1.04A 25W

> Certificate : CE ROHS

> Ripple and Noise : 200mV maximum

> PF : > 0.90

> Effiency : 85% minimum

> Gross Weight : 200g

> Dimension : 200(H)*30(W)*20(H)mm

> material : aluminum case

> Safety protection : over load , over voltage , short ciruict , open load protection .

Specifications

Input Rated Voltage :	100Vac~240Vac
Input Frequency Range :	47Hz~63Hz
Input Inrush Current :	1.8A max
Efficiency :	85%(MIN)at Rated Voltage
Output :	12V 2.08A max / 24V 1.04A max
Output power :	25W
Ripple and Noise :	<150Mv at full road with 20MHz bandwidth
Turn On Delay Time :	<3S (AC:110V and full load)
Safety protection :	over voltage and current protection.
Leakage Current :	<5mA
Output typer :	Constant voltage
Operating Temperature :	0°C----+60°C
Storage Temperature :	-20°C----+85°C
Certificate :	CE GS TUV UL/CUL FCC ROHS,SAA,PSE,C-TICK
Safety Standard :	EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005; EN 61347-1:2008 EN 61347-2-13:2006
Application :	For led light , led strip , led down light etc….

MODEL LIST :

IP 67 CONSTANT VOLTAGE LED DRIVER
Model	Input Voltage	Output Power	Output Voltage	Output Current	Power Factor	Dimension
WTF-D12010A	100-240V	10W	12V	0.83A	0.95	585823mm
WTF-D24010A	24V	0.42A
WTF-D12010A	100-240V	10W	12V	0.83A	0.95	1003221mm
WTF-D24010A	24V	0.42A
WTF-D12015A	100-240V	15W	12V	1.25A	0.95	1203221mm
WTF-D24015A	24V	0.65A
