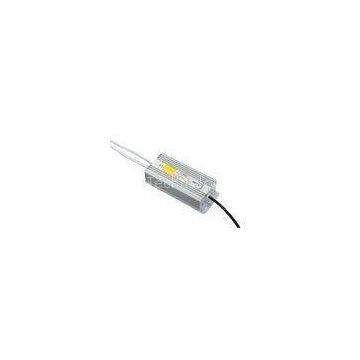

60W Outdoor Waterproof Led Driver 12V 5A / 24V 2.5A Output CE ROHS Approval

Shenzhen Starwell Technology Co., Ltd.
60W Outdoor Waterproof Led Driver 12V 5A / 24V 2.5A Output CE ROHS Approval thumbnail-1
60W Outdoor Waterproof Led Driver 12V 5A / 24V 2.5A Output CE ROHS Approval photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
STARWELL
Place of Origin:
China
Model Number:
WTF-D12060A
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name STARWELL
Place of Origin China
Model Number WTF-D12060A
Delivery Time:10-15 days
Certification:UL,CE,ROHS, FCC,GS,SAA,C-TICK

60W Outdoor Waterproof Led Driver 12V 5A / 24V 2.5A Output CE ROHS Approval

Short Features  :

> application : outdoor application , led street light , road lamp , pool lights

> input voltage range : 90~240VAC

> output : 12V 5A max / 24V 2.5A max 60W

> Ripple and Noise : 200mV maximum

> PF :  > 0.95

> Effiency : >85%

> Output type : constant voltage type

> material : aluminum case / metal case

> Certificate : CE ROHS FCC UL GS CB SAA C-tick

> Gross Weight : 200g

> Mechanical Dimension : 175(H)*52(W)*35(H)mm

> Safety protection : over load , over voltage , short ciruict , open load protection .

Specifications

Input Rated Voltage :

100Vac~240Vac

Input Frequency Range :

47Hz~63Hz

Input Inrush Current :

1.8A max

Efficiency  :

85%(MIN)at Rated Voltage

Output :

12V 5A max / 24V 2.5A max

Output power :

60W

Ripple and Noise :

<150Mv at full road with 20MHz bandwidth

Turn On Delay Time :

<3S  (AC:110V and full load)

Safety protection :

over voltage and current protection.

Leakage Current :

<5mA

Output typer :

Constant voltage

Operating Temperature :

0°C----+60°C

Storage Temperature :

-20°C----+85°C

Certificate :

CE GS TUV UL/CUL FCC ROHS,SAA,PSE,C-TICK

Safety Standard :

EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005; EN 61347-1:2008 EN 61347-2-13:2006

Application :

For led light , led strip , led down light etc….

MODEL LIST  :

IP 67 CONSTANT VOLTAGE LED DRIVER

Model

Input Voltage

Output Power

Output Voltage

Output Current

Power Factor

Dimension

WTF-D12010A

100-240V

10W

12V

0.83A

0.95

58*58*23mm

WTF-D24010A

24V

0.42A

WTF-D12010A

100-240V

10W

12V

0.83A

0.95

100*32*21mm

WTF-D24010A

24V

0.42A

WTF-D12015A

100-240V

15W

12V

1.25A

0.95

120*32*21mm
