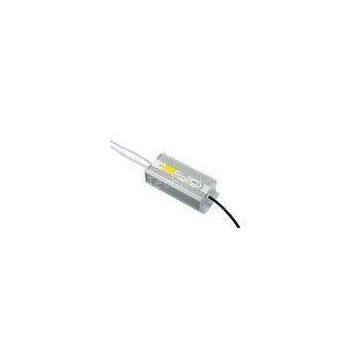

12V DC 80W Waterproof Led Driver , Swimming Pool Lights Led Power Supply

FOB Price

Negotiable / Carton

1 Carton(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	STARWELL		Place of Origin	China
Model Number	WTF-D12080A

Delivery Time:10-15 days
Certification:UL,CE,ROHS, FCC,GS,SAA,C-TICK

12V DC 80W Waterproof Led Driver , Swimming Pool Lights Led Power Supply

Short Features :

> Output type : constant voltage type

> application : swimming pool lights , outdoor application

> Certificate : CE ROHS FCC UL GS CB SAA C-tick

> input voltage range : 90~240VAC

> output : 12V 6.67A max / 24V 3.3A max 80W

> Ripple and Noise : 200mV maximum

> PF : > 0.95

> Effiency : >85%

> material : aluminum case / metal case

> Gross Weight : 200g

> Mechanical Dimension : 175(H)*52(W)*35(H)mm

> Safety protection : over load , over voltage , short ciruict , open load protection .

Specifications

Input Rated Voltage :	100Vac~240Vac
Input Frequency Range :	47Hz~63Hz
Input Inrush Current :	1.8A max
Efficiency :	85%(MIN)at Rated Voltage
Output :	12V 6.67A max / 24V 3.3A max
Output power :	80W
Ripple and Noise :	<150Mv at full road with 20MHz bandwidth
Turn On Delay Time :	<3S (AC:110V and full load)
Safety protection :	over voltage and current protection.
Leakage Current :	<5mA
Output typer :	Constant voltage
Operating Temperature :	0°C----+60°C
Storage Temperature :	-20°C----+85°C
Certificate :	CE GS TUV UL/CUL FCC ROHS,SAA,PSE,C-TICK
Safety Standard :	EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005; EN 61347-1:2008 EN 61347-2-13:2006
Application :	For led light , led strip , led down light etc….

MODEL LIST :

IP 67 CONSTANT VOLTAGE LED DRIVER
Model	Input Voltage	Output Power	Output Voltage	Output Current	Power Factor	Dimension
WTF-D12010A	100-240V	10W	12V	0.83A	0.95	585823mm
WTF-D24010A	24V	0.42A
WTF-D12010A	100-240V	10W	12V	0.83A	0.95	1003221mm
WTF-D24010A	24V	0.42A
WTF-D12015A	100-240V	15W	12V	1.25A	0.95	1203221mm
