HCB22-63 Screw Fixed Short Circuit Breaker / Overload Main Circuit Breaker for Power

FOB Price

Negotiable / Kilogram

1 Kilogram(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	VECAS		Place of Origin	China
Model Number	HCB22-63

Product Description

Delivery Time:WITHIN 30DAYS AFTER L/C OR 30% DEPOSIT RECEIVED
Certification:CE

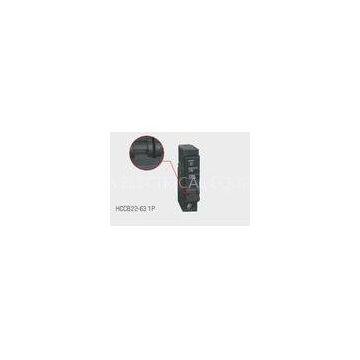

HCB22-63 Screw fixed short circuit breaker / overload main circuit breaker for power

Quick Detail:

Place of Origin: China Brand Name: VECAS Certificate:CE Electricity Type: AC Phase::3 Pole: 4 Rated voltage: AC240/415V Rated current :1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63

Specifications and Feature :

1. Protection against both overload and short circuit

2. High breaking capacity

3. Contact position indication

4. Applicable to terminal and pin/fork type busbar connection

Technical Data :

Pole No.	1, 2, 3, 4
Rated voltage	AC 240/415V
Rated current (A)	1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63
Tripping curve	B, C, D
Rated breaking capacity (Icn)	4500A, 6000A
Rated frequency	50/60Hz
Rated impulse withstand voltage	6.2kV
Electro-mechanical endurance	6000
Connection terminal	Screw terminal
Connection capacity	Pillar terminal with clamp
Rigid conductor up to 25mm2
Fastening torque	2.0 Nm
Installation	On symmetrical DIN rail 35mm
Panel mounting
