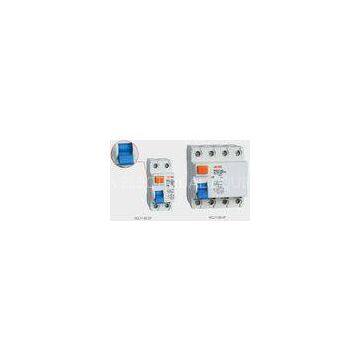

DIN rail fixed Residual Current Circuit Breaker / RCCB Switch for generator 2P 4P
Specification and Feature
Provides protection against earth fault/leakage current and function of isolation High breaking current withstand capacity Applicable to terminal and pin/fork type busbar connection Fire resistant plastic parts endures abnormal heating and strong impact Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity Independent of power supply and line voltage, and free from external interference, voltage fluctuationTechnical Data
|
Mode |
Electro-magnetic type, electronic type |
|
Residual current characteristics |
A, AC |
|
Pole No. |
2, 4 |
|
Rated making and breaking capacity |
630A |
|
Rated current(A) |
25, 40, 63 |
|
Rated voltage |
240/415V AC |
|
Rated frequency |
50/60Hz |
|
Rated residual operating current IΔn(mA) |
10, 30, 100, 300, 500 |
|
Rated residual non operating current IΔno |
0.5IΔn |
|
Rated conditional breaking current Inc |
6000A |
|
Rated conditional residual breaking current IΔc |
6000A |
|
Tripping duration |
Instantaneous tripping≤0.1s |
|
Residual tripping current range |
0.5IΔn~IΔn |
|
Electro-mechanical endurance |
4000 cycles |
|
Connection capacity |
Rigid conductor up to 25mm2 |
|
Connection terminal |
Pillar terminal with clamp |
|
Fastening torque |
2.0 Nm |
|
Installation |
On symmetrical DIN rail 35mm |
|
Panel mounting |
