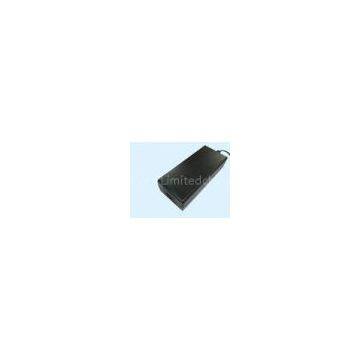

Notebook Desktop Power Adapter 90VAC - 264VAC , Over Current , Short Circuit Protection

Name: Notebook Desktop Power Adapter 90VAC - 264VAC , Over Current , Short Circuit Protection
Brand: Panfore
SKU: 148941578
Availability: InStock

Notebook Desktop Power Adapter 90VAC - 264VAC , Over Current , Short Circuit Protection thumbnail-1

Notebook Desktop Power Adapter 90VAC - 264VAC , Over Current , Short Circuit Protection photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Panfore

Place of Origin:

China

Model Number:

P190D5000

Contact Supplier Request Quote Chat Now

Panfore Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name Panfore

Place of Origin China

Model Number P190D5000

Delivery Time:15 days
Certification:CE,ROHS, FCC,CB,UL,C-TICK

Notebook Desktop Power Adapter 90VAC - 264VAC , Over Current , Short Circuit Protection

Feature:

. Universal AC Input

. PFC Function Built in, PF>0.93

. High Efficiency , Low Temperature

. Protection : Over Current , Short Circuit , Over Voltage

. Approved By : UL CE CB C-TICK FCC

. Warranty : 2 years

Description:

Electronics Specification :
Input Voltage Range:	90~264Vac
AC current:	1.5A
PF	>0.93
Frequency:	50/60Hz
Inrush Current:	30A/230Vac
Leakage Current:	0.25mA/240Vac
Output Voltage:	19.0Vdc
Output Voltage Range :	18.0~ 20.0Vdc
Max Output Current :	5.0A
Efficiency :	> 85%
Line regulation:	±1%
Load regulation:	±5%
Over current protection:	Hiccup mode, Auto recovery
Over voltage protection:	Power shutdown, Auto recover
Environment :
Working Temp.:	0~40℃
Working Humidity:	20%~90% RH non-condensing
Storage Temp. & Humidity:	-20℃~85℃, 10%~95% RH
Reliability :
Hi-Pot Testing Voltage :	I/P to O/P : 3.0 (60Sec.) KVac
Safety Standard :	EN60950
EMI Standard :	EN55022B
Safety Approval :
Certificate	UL, CE, FCC, C-TICK,CB
Mechanical Characteristics
Size:	(L)150(W)65(H)35.5mm
AC connector	IEC8/IEC14
DC Cable:	1.5M
DC connector:	5.52.112mm, other type connector avaible

Certificate:

Applications:

widely used in household appliances, IT digital products, medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.
