Certification:CE,ROHS, FCC,CB,UL,C-TICK

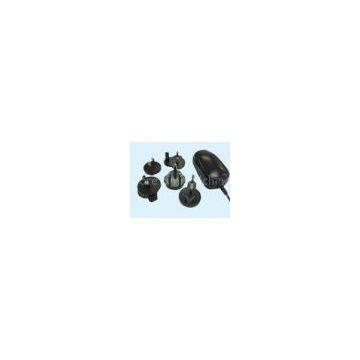

24W 12 Volt AC Multi Plug Power Adapter With Detached UK EU US SAA Plugs
Feature:
. Universal AC Input : 100 ~ 240 Vac
. Detached Plugs: EU , SAA , US, UK ,
. Class II Power
. No Load Power Comsuption < 0.3W
. Protections: Over Current , Short Circuit
. Warranty : 2 Years
Description:
24W 12V Multi Plug Power Adapter With Detached UK CE US SAA Plugs
|
Electronics Specification : |
|
|
Input Voltage Range: |
90~264Vac |
|
AC current: |
0.2A |
|
Frequency: |
50/60Hz |
|
Inrush Current: |
30A/230Vac |
|
Leakage Current: |
0.25mA/240Vac |
|
Output Voltage: |
12.0 Vdc |
| Output Voltage Range : |
11.4 ~ 12.6 Vdc |
| Output Current : |
2.0A |
|
Efficiency : |
> 85% |
| Ripple And Noise : |
< 100mVp-p |
|
Line regulation: |
±1% |
|
Load regulation: |
±5% |
|
Efficiency: |
Meet energy star level V(CEC) |
|
Over current protection: |
Hiccup mode, Auto recovery |
|
Over voltage protection: |
Power shutdown, Auto recover |
|
Environment : |
|
|
Working Temp.: |
0~40℃ |
|
Working Humidity: |
20%~90% RH non-condensing |
|
Storage Temp. & Humidity: |
-20℃~85℃, 10%~95% RH |
|
Reliability : |
|
|
Hi-Pot Testing Voltage : |
I/P to O/P : 3.0 (60Sec.) KVac |
|
Safety Standard : |
EN60950 |
|
EMI Standard : |
EN55022B |
|
Safety Approval : |
|
|
Certificate |
UL, CE, FCC, C-TICK,CB |
|
Mechanical Characteristics : |
|
|
Size: |
90mm*50mm*35mm (L*W*H) |
|
AC connector |
Detached UK, US, EU, SAA available |
|
DC Cable: |
1.8M |
|
DC connector: |
5.5*2.1*12mm, other type connector avaible |
Applications:
widely used in household appliances, IT digital products, medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.
