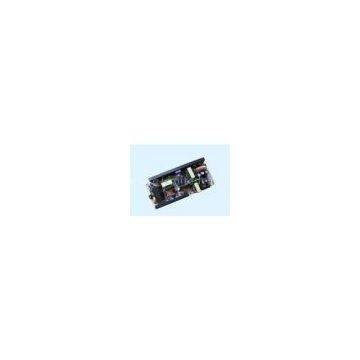

Dual Output Power Supply Open Frame 250W With PFC , 90Vac - 264Vac

Electronics Specification :

Input Voltage Range:

90~264Vac

AC current:

3.0A

> 0.93

Frequency:

50 / 60Hz

Inrush Current:

30A / 230Vac

Leakage Current:

<0.25mA / 240Vac

Output Voltage :

CH1 : 12V ~ 48Vdc ; CH2 : 5Vdc

 ±5%

8.30A

Output Power :

250.0W ( Max. )

Line regulation:

±1%

Load regulation:

±5%

Efficiency:

Meet energy star level V(CEC)

Over current protection:

Hiccup mode, Auto recovery

Over voltage protection:

Power shutdown, Auto recover

Environment :

Working Temp.:

0~40℃

Working Humidity:

20%~90% RH non-condensing

Storage Temp. & Humidity:

-20℃~85℃, 10%~95% RH

Reliability :

Hi-Pot Testing Voltage :

I/P to O/P : 3.0 (60Sec.) KVac

Safety Standard :

EN60950

EMI Standard :

EN55022B

Safety Approval :

Certificate

CE , REACH , ROHS

Mechanical Characteristics :

PCB Size:

222mm * 95mm * 40mm ( L * W * H )

AC connector

VH-2,Pin=3.96mm

DC connector:

WH-4,Pin=3.96mm

Model No.

Voltage

Current range

Ripple & Noise

Eff.

PFOD250-A

CH1

12.0V

0.1~15.0A

120mV

>83%

CH2

5.0V

0.1~5.0A

50mV

PFOD250-B

CH1

24.0V

0.1~9.4A

150mV

>86%

CH2

5.0V
