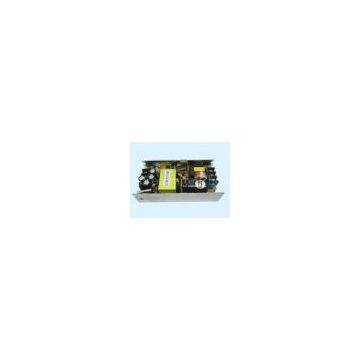

120W Open frame power supply 24VDC , Universal AC Input 50Hz / 60Hz

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Panfore		Place of Origin	China
Model Number	P120P5000

Product Description

Delivery Time:15 days
Certification:CE,ROHS, FCC,CB,UL,C-TICK

120W Open frame power supply 24VDC , Universal AC Input 50Hz / 60Hz

Feature:

. Universal AC Input
. \" U \" Type
. Protections: Overload, Short Circuit
. Low Cost, High Reliability
. 2 Years Warranty

Description:
120W 24V Open frame power supply U Type power supply

Electronics Specification :
Input Voltage Range:	90~264Vac
AC current:	2.5A at 115Vac , 1.2A at 230Vac
Frequency:	50 / 60Hz
Inrush Current:	30A / 230Vac
Leakage Current:	<0.5mA / 240Vac
Output Voltage :	24.0Vdc
Output Voltage Range :	22.80 Vdc ~ 25.20 Vdc
Output Current :	5.0A
Output Power :	120W ( Max. )
Line regulation:	±1%
Load regulation:	±5%
Efficiency:	Meet energy star level V(CEC)
Over current protection:	Hiccup mode, Auto recovery
Over voltage protection:	Power shutdown, Auto recover
Environment :
Working Temp.:	0~40℃
Working Humidity:	20%~90% RH non-condensing
Storage Temp. & Humidity:	-20℃~85℃, 10%~95% RH
Reliability :
Hi-Pot Testing Voltage :	I/P to O/P : 3.0 (60Sec.) KVac
Safety Standard :	EN60950
EMI Standard :	EN55022B
Safety Approval :
Certificate	CE , REACH , ROHS
Mechanical Characteristics :
PCB Size:	150mm * 80mm * 35mm ( L * W * H )
AC connector	VH-2,Pin=3.96mm
DC connector:	WH-4,Pin=2.54mm

Applications:

widely used in household appliances, IT digital products, medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.
