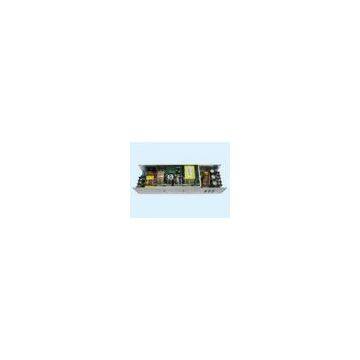

24VDC Single Output Open Frame Power Supply 200W For Led Lighting , Customized

Electronics Specification :

Input Voltage Range:

90~264Vac

AC current:

3.0A at 115Vac , 1.5A at 230Vac

Frequency:

50 / 60Hz

Inrush Current:

30A / 230Vac

Leakage Current:

<0.5mA / 240Vac

Output Voltage :

24.0Vdc

22.80 Vdc ~ 25.20 Vdc

8.30A

Output Power :

200.0W ( Max. )

Line regulation:

±1%

Load regulation:

±5%

Efficiency:

Meet energy star level V(CEC)

Over current protection:

Hiccup mode, Auto recovery

Over voltage protection:

Power shutdown, Auto recover

Environment :

Working Temp.:

0~40℃

Working Humidity:

20%~90% RH non-condensing

Storage Temp. & Humidity:

-20℃~85℃, 10%~95% RH

Reliability :

Hi-Pot Testing Voltage :

I/P to O/P : 3.0 (60Sec.) KVac

Safety Standard :

EN60950

EMI Standard :

EN55022B

Safety Approval :

Certificate

CE , REACH , ROHS

Mechanical Characteristics :

PCB Size:

197mm * 85mm * 37mm ( L * W * H )

AC connector

VH-2,Pin=3.96mm

DC connector:

WH-4,Pin=2.54mm
