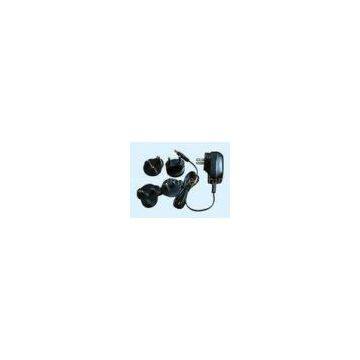

6VDC Wall Mount Battery Charger , UK SAA US EU Interchangeable Plugs

6VDC Wall Mount Battery Charger , UK SAA US EU Interchangeable Plugs thumbnail-1
6VDC Wall Mount Battery Charger , UK SAA US EU Interchangeable Plugs photo-1
Negotiable MOQ: 1 Kilogram (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Panfore
Place of Origin:
China
Model Number:
BC060I0500
Contact Supplier Request Quote Chat Now
Panfore Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Panfore
Place of Origin China
Model Number BC060I0500
Delivery Time:15 days
Certification:CE,ROHS,CEC,ETL

6VDC Wall Mount Battery Charger , UK SAA US EU Interchangeable Plugs

Feature:

. Input Voltage Range : 100 - 240Vac

. Interchangeable AC Plugs : UK , SAA , US , EU

. Non - load consumption < 0.3W

. Protections: Over Current, Short Circuit

. Approved By ETL/CE/CEC

. Warranties : 2 Years

Description:

Interchangeable Plugs Wall Mount Battery Charger 6V500mA

Electronics Specification :

Input Voltage Range :

90 – 264Vac

Input Frequency :

50/60Hz

AC Input Current :

0.2A at Full Load and any Input Voltage

Normal Output Voltage :

6.0Vdc

Maximum Output Current :

450mA~550mA

Float Output Voltage:

6.8 ~ 7.3Vdc (Red LED ON)

Bulk Charge Mode Voltage:

3.0 ~ 6.8Vdc (NO LED ON)

Wet battery mode Voltage:

3.0~7.5Vdc

Maximum Output wattage:

4.00W(At 500mA load and any line)

Line Regulation :

±1% Maximum

Load Regulation :

±5% Maximum

Efficiency :

＞70%

Output Short Circuit Protection :

Can be Shorted without damage and auto recovery.

Environment :

Working Temp.:

0~40℃

Working Humidity:

20%~90% RH non-condensing

Storage Temp. & Humidity:

-20℃~85℃, 10%~95% RH

Reliability :

Hi-Pot Testing Voltage :

I/P to O/P : 3.0 (60Sec.) KVac

Safety Standard :

EN60335-2-29

EMI Standard :

EN55022B

Mechanical Characteristics :

Case :

Euro (CEE) Version

Case Size :

(L)65*(W)40.3*(H)28.7mm

Input Connector :

SAA , US , UK , EU plus Avaible

Output Cable :

1.8M

Output Connector :

Red and Black clip, other type is available

Safety Approval :

Certificate:

ETL, CE, CEC

Led Instruction Manual

Charger Connect to 230Vac: LED Indication Red

Charger Connect to 230Vac and Connect to Battery when charging. The charging current over 0.25A: LED Off

Battery when Fully Charging and charging current below 0.25A: LED Indication Red

Certificate:

Applications:

widely used in household appliances, IT digital products,  medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.
