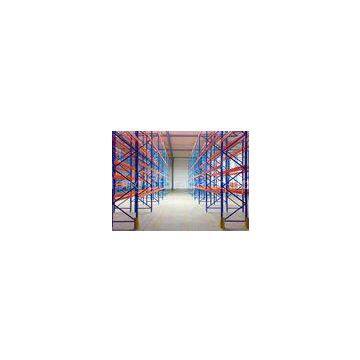

Industrial Blue Selective Pallet Racking System For Supermarket Store
Quick Detail:
Specialist in Warehouse Sollutions Selective Pallet Racking & Shelving
● ideal storage solution for a variety of industry applications
● offering high load capacity and durable and rugged structure
● Maximize the storage space
● Increase productivity and enhance operation efficiency
● Increases load flexibility in terms of both weight and volume
● Availability of a wide variety of sizes, gauges and accessories custom fit to any application
Description:
Specialist in Warehouse Sollutions Selective Pallet Racking & Shelving:
|
Classification: |
Heavy duty Pallet Racking |
|
Use: |
Warehouse storage rack Supermarket store Industrial storage Retail store inventory rooms cold storage applications wholesale stores |
|
Features: |
● Easy assembled and dissembled structure designed ● Beams can be adjusted every 75mm in unit, adapted to different height demand. ● Constructed by excellent cool rolling and coal steel element forming technology, static powder coating surface processed, enduing with antiseptic ability ● It can be connected additionally in landscape orientation and in portrait so as to increase stability and safety |
|
Structure: |
Dismountable structure |
|
Benefits |
Each pallet can be located and moved individually without interference to other pallets Can be designed to handle virtually any pallet size or weight Accessible by any type of forklift Most cost-effective and versatile of all storage solutions Provides fast handling of products Compatible with the majority of material handling equipment and warehouse environments The strength and integrity of the system provides maximum protection for the stock that is being stored |
|
Loading capacity: |
1000-3000 Kg per level |
|
Quality: |
Strong and stable |
|
Size: |
Customized size |
|
Materials: |
High quality steel Q235 |
|
Material thickness: |
1.5-2.5mm |
|
Upright: |
Omega Section |
|
Pitch holes: |
pitch 75mm square hole with good safety |
|
Beams: |
Box-shape beams or reinforced box-typed beam |
|
Levels: |
2~8 levels, customized |
|
Welding: |
Good neat welding |
|
Safety Pin: |
L shape locking pins |
|
Colors: |
Standard Blue & Orange or customized |
|
HS Code |
73089000 |
Specifications:
|
● Maximum Height(Upright/Pillar): |
2000mm - 12,000 mm |
|
● Max Width/Length(Beam): |
Up to 3,900 mm |
|
● Max Depth(Upright frame): |
Up to 1,500 mm |
|
● Max Weight: |
1,000kg - 3,000 kg / layer |
|
● Mobility: |
The height of each beam can be adjusted by 75mm of pitch freely. |
|
● Surface fini |
