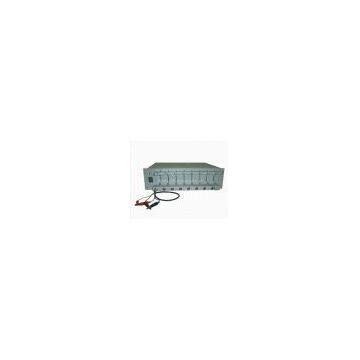

5V 3A 8 Channel Tester for Cylinder Battery Square Battery

lithium ion battery testing machine--- mobile phone battery packing line testing machine

1.Comprehensive Test:

    A.Battery type:Li-ion,Ni-H,Ni-Cd

    B.Voltage type:2.4V,3.6V,4.8V,6.0V, 7.2V.

    C.General testing items:Charging test,discharging test,protection test.

    D.Optional testing item: identifier code, identifier resistance.

    E. Normal voltage 3.7V is same as 3.6V, identifier code is for Motorola mobile battery.

    F. Testing time is about 0.8-1.5s according to different items.

2. Capacity Test:

    A.Battery type:Li-ion,Ni-H,Ni-Cd

    B.Voltage type:2.4V,3.6V,4.8V,6.0V, 7.2V.

    C.Testing item:Total capacity,plateau capacity,overcharge protecting voltage,overdischarge protecting voltage,short circuit and over current protection.

    D. Testing time is about 1-3hours according to different types battery.

3.Identifier code:

Identifier the code of the  mobile battery,64+1024.

Technical index

1.Current testing accuracy:±5mA

2.Voltage testing accuracy: ± l0mV

3Capacity testing accuracy: ± 2%

4.Resistance testing accuracy: ± 10%

Service environment

1.Voltage input:220VAC ± 10% 0: 5A

2.Working temperature:00C-350C

3.Storage temperature:-20"C-600C

4.Relative temperature:20%-80%
