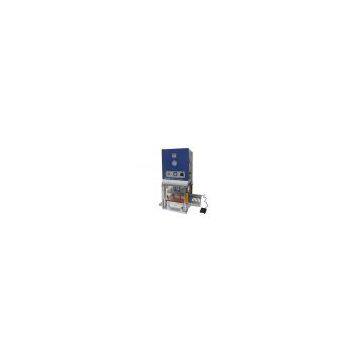

Semi-Automatic Die Cutter for Pouch Cell Electrode Sheet GN-180

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	GELON		Place of Origin	China
Model Number	GN-180

SPECIFICATIONS:

Model: GN-180

Working Table Area: 300mm(L) * 250mm(W)

Die Set Dimensions: One set of standard electrode die is included.

dimensions:81mm (L) x 49mm (W) with current collect included

Customized die within 230X270mm is available: $1000 per die

Working Voltage: AC 110V or 220V 50/60 Hz, single phase

Max. Power Consumption: 10W

Cutting Accuracy: ±0.1mm

Air Cylinder: 3 tons Max. pressure

Tensile Cylinder: 0.15 tons pressure

Feeding: Manually

Production Yield: 800 - 2000 pieces of electrodes per hour

Warranty: One Year limited warranty with lifetime support

Air Pressure: recommend 60 psi (Air compressor is not included)

Product Dimensions: 550mm(L) x 450mm(W) x 900mm(H)

Net Weight: 120kg (265 lbs)
