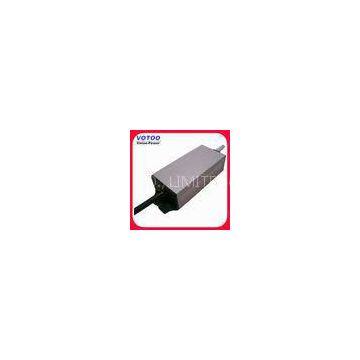

60W Waterproof Electronic LED Driver , Constant Voltage Power Supply DC 24V 2.5A

Delivery Time:5-10 days
Certification:CE,ROHS

60W Waterproof Electronic LED Driver , Constant Voltage Power Supply DC 24V 2.5A

Quick Detail:


Waterproof Electronic LED Driver Constant Voltage Power Supply DC 24V 2.5A Certificate: CE & RoHS Package; white box Brand: VOTOO 100% Full Load Burn-In Test protections:Short circuit/Overload/Over Temp OEM/ODM welcome Warranty: 1 year

Description:


Features:

o Universal Input 100~240VAC 50/60Hz

o Small volume, light weight, high efficiency.

o Cooling by free air convection.

o 100% Full load burn-in test.

o One year warranty.

o Output Voltage: 24V

o Output Current: 2.5A

o Power: 60Watt

o Ripple & Noise: 1% of Output Voltage

o Leakage Current: 0.25mA

o No load power Consumption

o Working Temperature:0-40°C Max

o Efficiency:78%Min

Weight: 500g

o Dimensions: 130.0 x50.0 x 25.0mm

1.Good quality with competitive price

2.CE/Rohs/IP67 standard

3.IP67 waterproof

tections:Short circuit/Overload/Over Temp

5.100% Full Load Burn-In Test

6.waterproof design for outdoor use

7.Suitable for all kinds of LED lightings,street lighting,moving sign applications.

8. warranty: 2 years

9. Lead time: 1 week

10. Other functions can be designed according to your requirements

o Accurate information and descriptions.

o All orders are shipped on time.

o All items are fully inspected prior to shipping to meet international standards by our QC staffs.

o All items are with CE RoHS approval to ensure the products quality.



Specification:


OUTPUT	DC VOLTAGE	24V
OUTPUT POWER	60W
CURRENT RANGE	2.5A
INPUT	VOLTAGE RANGE	110VAC -264V AC
FREQUENCY RANGE	50-60Hz
EFFICIENCY(Typ.)	78%
ENVIRONMENT	WORKING TEMP.	-0°C ~ +40°C (Refer to output load derating curve)
STORAGE TEMP.,HUMIDITY	-10°C ~ +70°C 10~95% RH
COOLING METHOD	BY FREE AIR CONVECTION

How to Install?

Connect power supply to the supplied unit. Power supply must be connected to a working electrical AC line with a voltage of 100-240V. Do not install power supply in locations with high humidity, dust or strong direct sunlight. The power supply should be installed in a location with good airflow. Power supply can only be installed indoors.



Applications:

1. CCTV security, door access, digital camera, etc.

2. POS machine, mini printing machine, etc.

3. Electronic scale, flowerpot etc.

4.Suitable for LED strip light, LED neon light, LED module, LED light-emitting character
LED light box, LED meteor light, LED hurdle light, LED screen
