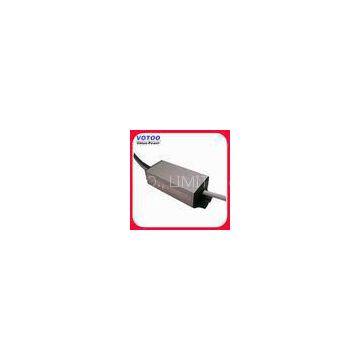

36W 3A Waterproof Power Supply , Electronic LED Converter 110V To DC 12V
Quick Detail:
Description:
Features:
o Universal Input 100~240VAC 50/60Hz
o Small volume, light weight, high efficiency.
o Cooling by free air convection.
o 100% Full load burn-in test.
o One year warranty.
o Output Voltage: 12V
o Output Current: 3A
o Power: 36W
o Ripple & Noise: 1% of Output Voltage
o Leakage Current: 0.25mA
o No load power Consumption
o Working Temperature:0-40°C Max
o Efficiency:78%Min
Weight: 500g
o Dimensions: 130.0 x50.0 x 25.0mm
o Accurate information and descriptions.
o All orders are shipped on time.
o All items are fully inspected prior to shipping to meet international standards by our QC staffs.
o All items are with CE RoHS approval to ensure the products quality.
Adopting full waterproof design ,IP67
Protective Functions: short circuit protection,overload protection and over heating protection.
Dissipating by natural air flow
100% full load aging testing
Specially designed for LED lighting Equippment
CE and Rohs approvals
Specification:
|
OUTPUT |
DC VOLTAGE |
12V |
|
OUTPUT POWER |
36W |
|
|
CURRENT RANGE |
3A |
|
|
INPUT |
VOLTAGE RANGE |
110VAC -264V AC |
|
FREQUENCY RANGE |
50-60Hz |
|
|
EFFICIENCY(Typ.) |
78% |
|
|
ENVIRONMENT |
WORKING TEMP. |
-0°C ~ +40°C (Refer to output load derating curve) |
|
STORAGE TEMP.,HUMIDITY |
-10°C ~ +70°C 10~95% RH |
|
|
COOLING METHOD |
BY FREE AIR CONVECTION |
How to Install?
• Make sure work in proper environments are stated in this Guide.
• Do not overload.
• Avoid free of load while a power supply is powered on, keep proper loading
• Always keep good ventilation
• Do not mount on wood or flammable surface, keep minimum 5CM for LED power supplies each other.
• Keep away from inflammable or explosive environments.
Applications:
1. CCTV security, door access, digital camera, etc.
2. POS machine, mini printing machine, etc.
3. Electronic scale, flowerpot etc.
4. LED strip, LED lighting etc.
