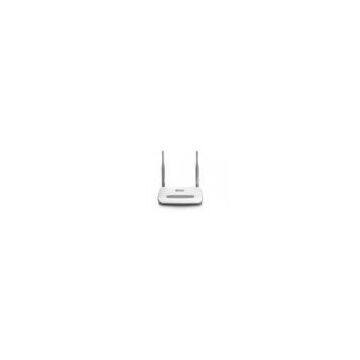

300Mbps 4 Port IEEE 802.3 Wireless ADSL Modem Routers With Single WPS Button

Hardware

Interface

1 * 10/100M Auto MDI/MDIX RJ45 4*RJ11

LED

PWR LAN1-LAN4 Internet ADSL WLAN WPS

Power Supply

DC 5V/2A(Output)

Button

WPS Power

Dimensions (L x W x H )

183*125.2*30.72 mm

Software

Standards

IEEE 802.3,IEEE 802.3u

Data Rate

Downstream: Up to 24Mbps
Upstream: Up to 1Mbps

ADSL Feature

Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1(G.DMT)
ITU-T G.992.2(G.Lite)
ITU-T G.992.3
ITU-T G .992.5
ITU-T K.2.1

ATM / PPP Protocol

ATM Forum UNI3.1/4.0 PVC (up to 8PVCs)
ATM Adaptation Layer Type 5 (AAL5)
ATM QoS
Bridged and routed Ethernet encapsulation
VC and LLC based multiplexing
PPP over Ethernet (RFC2516)
PPP over ATM (RFC 2364)
IPoA (RFC1577/2225)

Main Feature

DHCP, DHCP relay
NAT, Static Routing
VPN (PPTP, L2TP, IPSec) Pass-through
PVC/Ethernet Port Mapping
DNS Relay, DDNS
IGMP Multicast, IGMP snooping V1/V2
Virtual server, DMZ, ACL (Access Control List)
UPnP

Management

Web Based Configuration (HTTP), Remote management, Telnet management, command Line Interface,
TR-069, SNMP, Web Based Firmware Upgrade, CWMP (TR-069), Diagnostic Tools

Wireless Standards

IEEE802.11g, 802.11b,802.11n

Frequency Range

2.4-2.4835GHz

Wireless Speed

Up to 300Mbps

Wireless Security

Provides 64/128-bit WEP encryption security and wireless LAN ACL(Access Control List),WPA-PSK/WPA2-PSK authentication and TKIP/AES encryption security

Wireless Security Power

20dBm

Antenna Type

2*5dBi

Others

Certification

CE FCC

Environment

Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~90%RH non-condensing

Package

1 * DL4322
1 * Quick Installation Guide
1 * Power Adapter
1 * Ethernet Cable
2 * RJ11 cable
1 * Splitter
