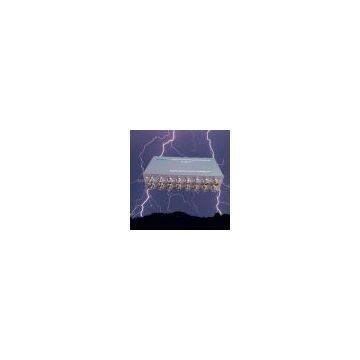

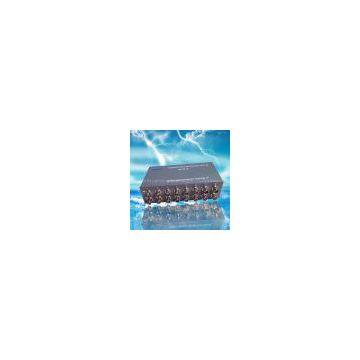

Integrated 8 channel NVR DVR video signal surge protector
- 0 Meter / Meters per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Integrated 17 channel DVR/NVR video signal lightning protector
-
Single channel video signal surge protector lightning arrester
-
Single Channel HD-SDI Video Signal Surge Protector lightning arrester
-
180V single channle Audio signal lightning protector
-
5KA 36V control line signal surge protector
-
5KA 12V control line signal surge arrester lightning protector
Product Details
| Brand Name | ANSUN | Place of Origin | China | |
| Model Number | AS12B-8 |
Product Description
Application
1. Video signal device point-to-point protection
2. To protect various video transmission device from being damaged by indirect lightning and surge voltage of signal transmission line, as well as RF transmission under same working voltage
3. Hard disk video and video segmentation machine in Comprehensive control cabinet
Feature
1) Multi stage protective circuit, low residual voltage
2) Low insertion loss, quick response
3) Precise limiting voltage, high discharger current capacity
4) Micro-strip PCB design, good isolation, low interference
5) Integrated multi channel video signal SPD box is standard 19 inch installation, 17 channels design to change quickly once any one channel does not work
6) Stable performance, reliable work
7) Easy installation
Specification
Model | AS12B-8 |
Nominal working voltage Un | 12V |
Nominal discharge current(kA) | 3KA |
Max discharge current(kA) | 5kA |
Protection level(Up) | ≤25V |
Response time | 1 ns |
Transmission rate | 100Mbps |
Insertion loss | ≤0.5 dB |
Interface type | BNC |
Channel | 8 |
Protection Level | IP20 |
Installation | Series |
Working conditions | Temperature:－40～＋85℃; Relative humidity:≤95％(25℃); Elevation≤3km |
Note: For latest information, please contact ANSUN company |
