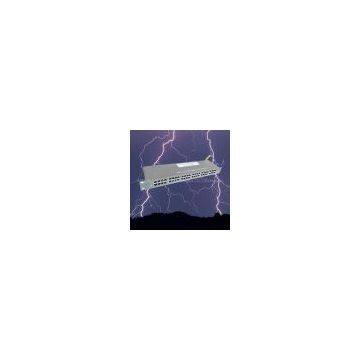

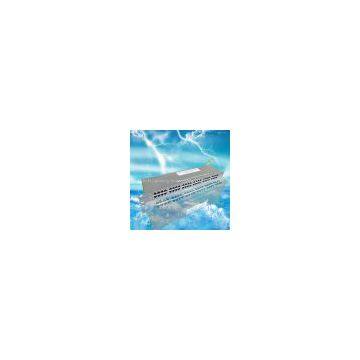

Integrated 24 Channel 1000M Network Switch Surge Protector

Application

1)  used in over-voltage protection from lightning and EMP of network equipments, like 10/100/1000Mbps SWITCH, HUB, ROUTER, etc

2)  Network computer room switch

3)  Network computer room server

4)  Other network interface devices

5)  24 channel integration SPD box is mainly applied in comprehensive network cabinet and switch cabinet

Features

1)  1000M transmission speed is suitable to 1000M network cable

2)   Multi stage protective circuit, low residual voltage

3)   Low insertion loss, quick response

4)   Precise limiting voltage, high discharger current capacity

5)   Micro-strip PCB design, good isolation, low interference

6)   Standard 19 inch integrated 24 channels network signal SPD box

7)   Stable performance, reliable work

8)   Easy installation

Specification

Installation and wiring

a) SPD is connected by series between protected devices and signal path

b) The input side of SPD connects to signal path, output side connects closely to protected device,

c) To connect ground line of SPD to lightning protection system ground device, lower connecting wire is better, within 1m
