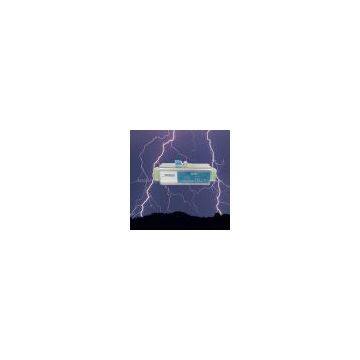

Help Center5KA 36V Control Line Signal Surge Protector
Related Products
-
Integrated 24 Channel 1000M Network Switch Surge ProtectorNegotiableMOQ: 1 Meter -
19 Feet RACK 24 Channel 100M POE Switch Surge Protector BoxNegotiableMOQ: 1 Meter
-
Single Channel 100M Network Signal Surge ProtectorNegotiableMOQ: 1 Meter
-
Single Channel 1000M Network Signal Surge Protector Lightning ArresterNegotiableMOQ: 1 Meter
-
Integrated 4 Channel Network Switch Surge ProtectorNegotiableMOQ: 1 Meter
Application
V.1, X.27, RS485, RS232
LAN, CAN, V.24/RS232-C, MODEM BUS
Token ring, industrial bus
Also suitable for other signal protection with same working voltage and transmission rate
Feature
1) Big discharger current capacity, low residual voltage
2) Low insertion loss, quick response
3) Precise limiting voltage
4) Multi stage protective circuit
5) International famous core component brand
6) Stable performance, reliable work
7) Easy installation
Specification
Model |
AS36Y |
Nominal operating Voltage |
36V |
Nominal discharge current(kA) |
3KA |
Max discharge current(kA) |
5kA |
Protection level(Up) |
Line to line : 30V |
Line to ground: 100V | |
Response time |
≤1ns |
Transmission rate |
10Mbps |
Insertion loss |
≤0.5 dB |
Interface type |
RS485(Y) |
Protection Channel |
2 |
Dimension |
90*23*54mm |
Protection Level |
IP20 |
Installation |
Series, slide guide |
Working conditions |
Temperature:－40～＋85℃; Relative humidity:≤95％(25℃); Elevation≤3km |
Note: For latest information, please contact ANSUN company |
Installation and wiring
a) SPD is connected by series between protected devices and signal path
b) The input side of SPD connects to signal path, output side connects closely to protected device,
c) To connect ground line of SPD to lightning protection system ground device, lower connecting wire is better, within 1m
